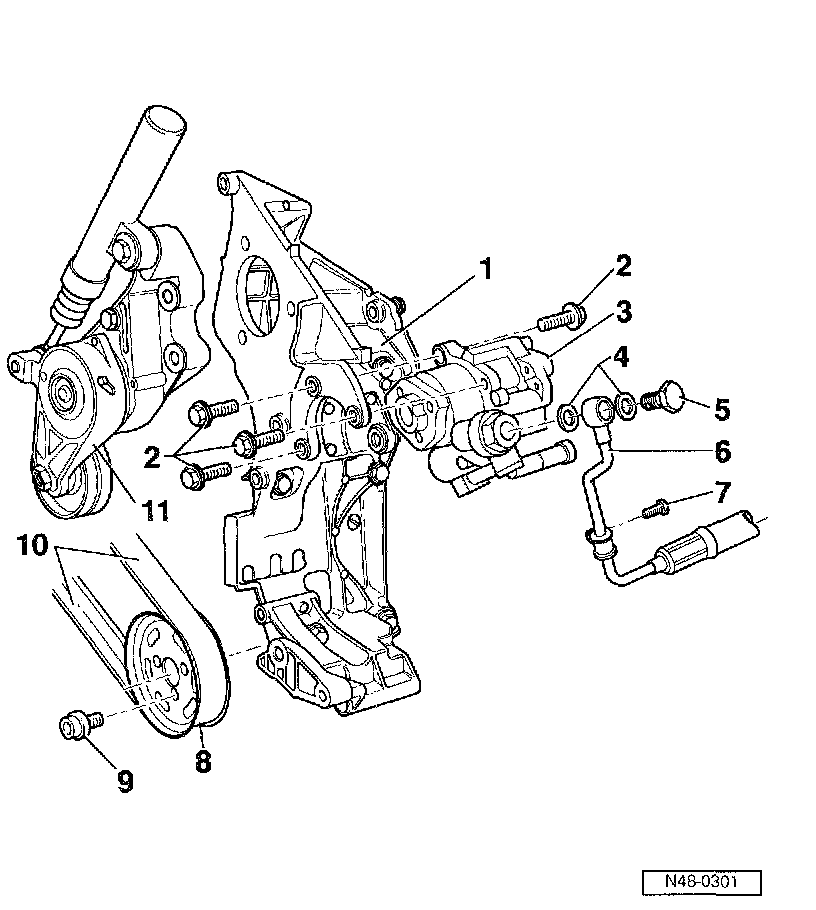

Vehicles With Power Steering Pump In Upper Area

1-Bracket
2-Bolt
^ 25 Nm (18 ft lb)
3-Power steering pump
^ Checking delivery pressure.
^ Before installing fill with oil.
4-O-ring
^ Always replace
5-Banjo bolt
^ 30 Nm (22 ft lb)
6-Pressure hose
7-Bolt
^ 22 Nm (16 ft lb)
8-Belt pulley
9-Socket-head bolt
^ 25 Nm (18 ft lb)
10-Ribbed belt
^ Mark direction of rotation before removing
^ Removing and belt routing
^ Check condition
11-Tensioner for ribbed belt
