Seatbelts - Assembly Overview

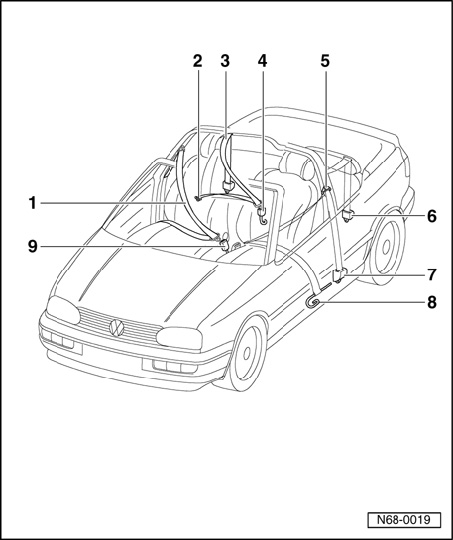

Seatbelts - Assembly Overview







1 - Front seatbelt
2 - Rear seatbelt anchor
3 - Rear seatbelt
4 - Rear belt latch
5 - Seatbelt height adjuster
6 - Inertia reel, rear
7 - Inertia reel, front
8 - Anchor rail
9 - Front seatbelt latch
