Front Door Window Regulator: Adjustments

Window regulator, adjusting

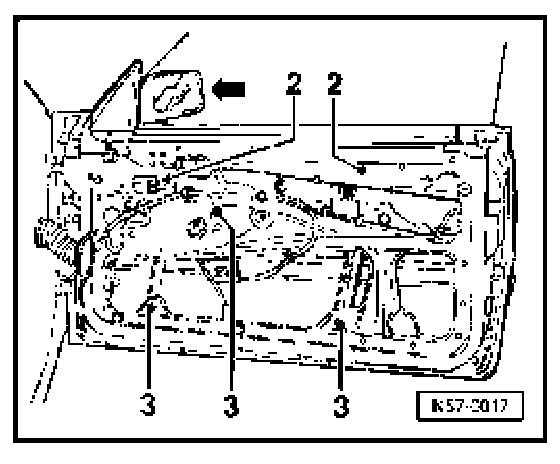

- Loosen window regulator bolts -2 and 3-.

- Crank window to approximately (50 mm below closed position - better stabilization) tighten upper window regulator bolts -2-10 mm (0.393 in.).

- Lower window, tighten window regulator bolts -3-, 10 Nm (0.393 in.).
