II-Reverse Gear Clutch Removing and Installing

II-Reverse Gear Clutch -K2- To Large Sun Gear, Removing And Installing
Refer to Overview.
Transmission, disassembling.

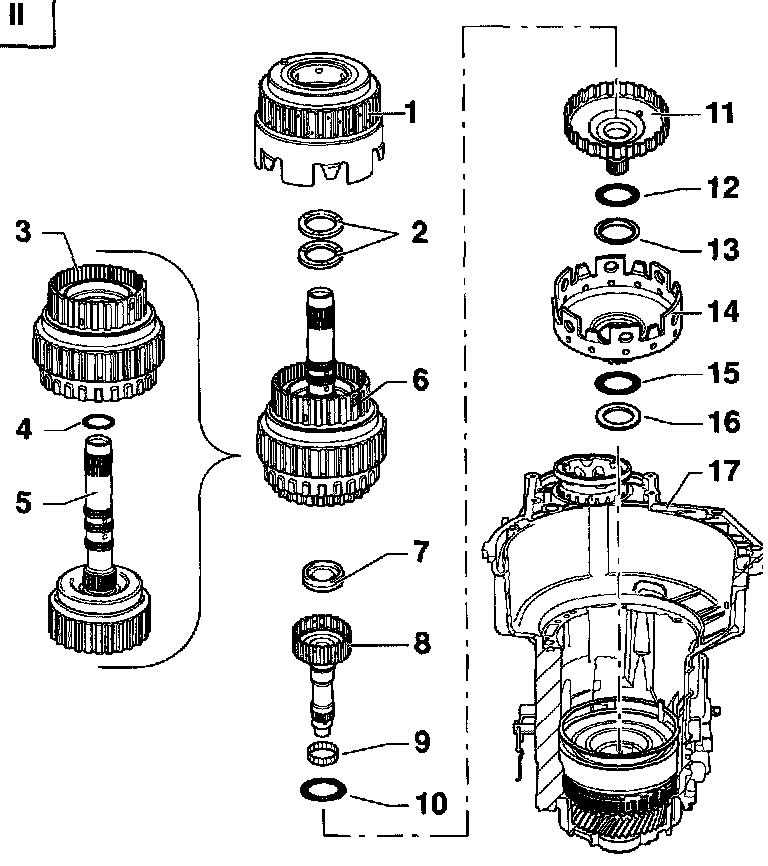

Assembling. Disassembling and Assembling





1. Reverse gear clutch -K2-
^ Disassembling and assembling. Refer to Clutch, A/T; Reverse Clutch; Service and Repair.
2. Shim
^ Determining thickness refer to Adjusting clutch play between -K1- and -K2-. Refer to Adjustments.
^ 1 or 2 shims can be installed
3. 1st to 3rd gear clutch -K1-
^ Spare part must comply with transmission code letters
^ Clutches -K1- and -K3- are pressed together
^ Disassembling and assembling. Refer to Clutch, A/T; Service and Repair.
4. O-ring
^ Always replace
^ To replace press -K1- off -K3-. Refer to Disassembling and Assembling. Disassembling and Assembling
5. 3rd and 4th gear clutch -K3- with turbine shaft
^ Spare part must comply with transmission code letters
^ Clutches -K1- and -K3- are pressed together
^ Disassembling and assembling. Refer to Clutch, A/T; Service and Repair.
6. 1st to 3rd gear clutch -K1- with 3rd and 4th gear clutch -K3-
^ Clutches -K1- and -K3- are pressed together
^ -K1- and -K3-, pressing off.
^ -K1- and -K3-, pressing on. Refer to Disassembling and Assembling. Disassembling and Assembling
7. Axially needle bearing with washer
^ Axial needle bearing faces toward small input shaft
8. Small input shaft
9. Needle bearing
10. Axial needle bearing
11. Large input shaft
12. Axially needle bearing
13. Axial needle bearing washer
^ With shoulder
14. Large sun wheel
15. Axial needle bearing
16. Axial needle bearing washer
17. Transmission housing with free wheel and circlips installed
