Bonded Rubber Bushing For Control Arm, Replacing

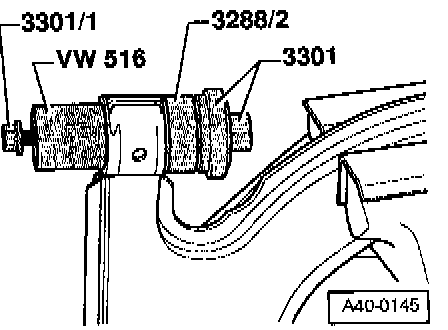

Fig. 1 Front control arm bushing, pressing out

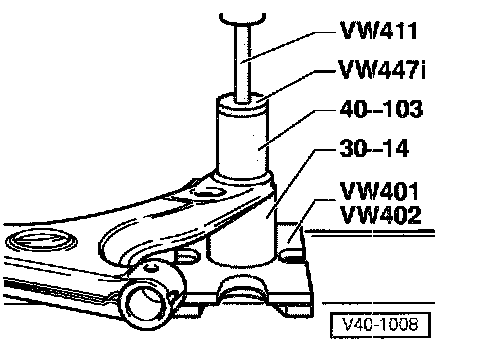

Fig. 2 Front control arm bushing, pressing in

Note:
^ To aid pressing in use oil G 294 421 A1
^ Never use grease!

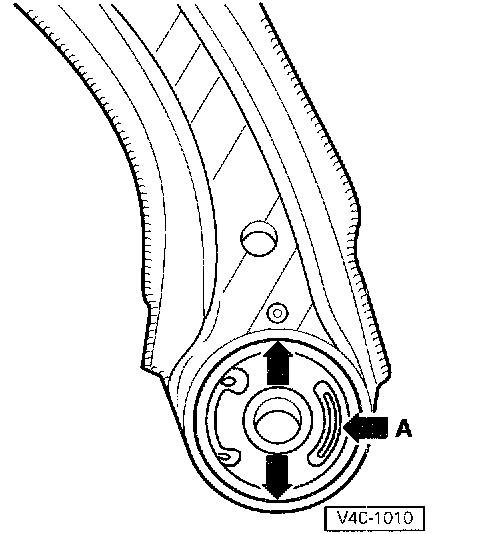

Fig. 3 Rear control arm mount, installation position
One of embossed arrows points toward projection (arrow A) on control arm.





Fig. 4 Rear control arm bushing, pressing out/in
