Starter Motor Cranks Too Slowly to Start Engine

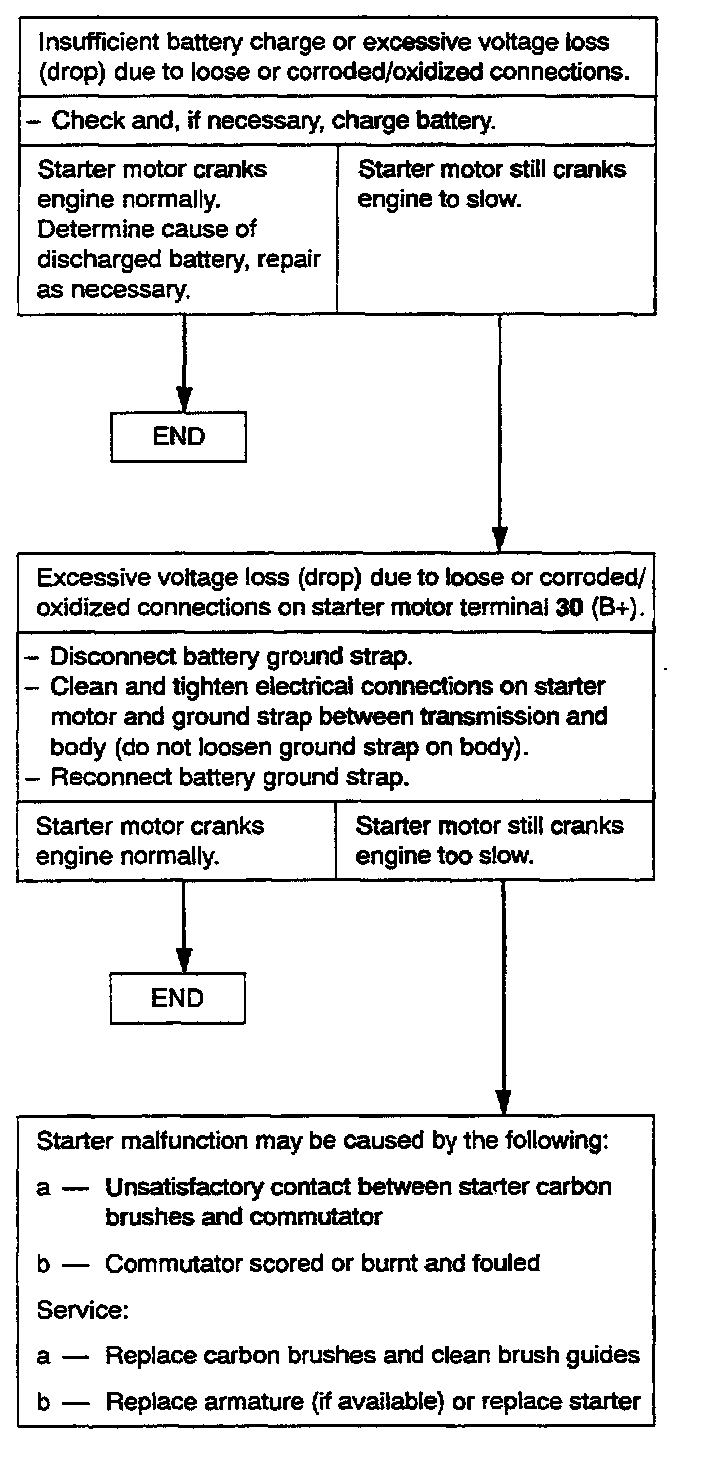

Starter Motor Cranks Too Slowly to Start Engine
STARTER MOTOR
CRANKS TOO SLOWLY TO START ENGINE
Test requirements:
-
Ribbed belt tension OK
