4-Cylinder Gas and Diesel Engines W/PS, Without A/C

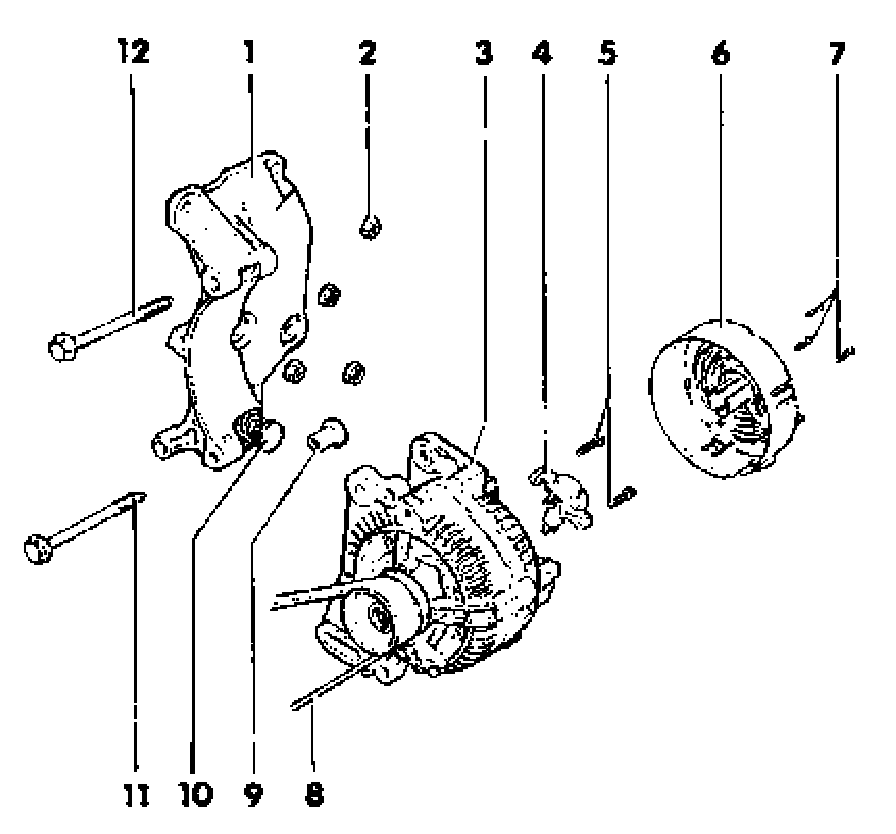

Generator (GEN) with ribbed belt and mounting bracket, assembly

4-cylinder gasoline and diesel engines with power steering, without A/C





1 - Mounting bracket

2 - Nut M8
-30 Nm (24 ft lb)

3 - Generator (GEN)

4 - Voltage Regulator (VR)
- When replacing, remove and install items - 7-, - 6-, - 5 -.

5 - Phillips-head screws M4 x 25

6 - Cover

7 - Bolts M3

8 - Ribbed belt

9-Sleeve M8
- Internally threaded

10 - Tensioning spring

11 -Bolt M8 x 39
-25 Nm (18 ft lb)

12 - Bolt M8 x 85
-25 Nm (18 ft lb)
