Radiator Cooling Fan Temperature Sensor / Switch: Locations
F18, F34:

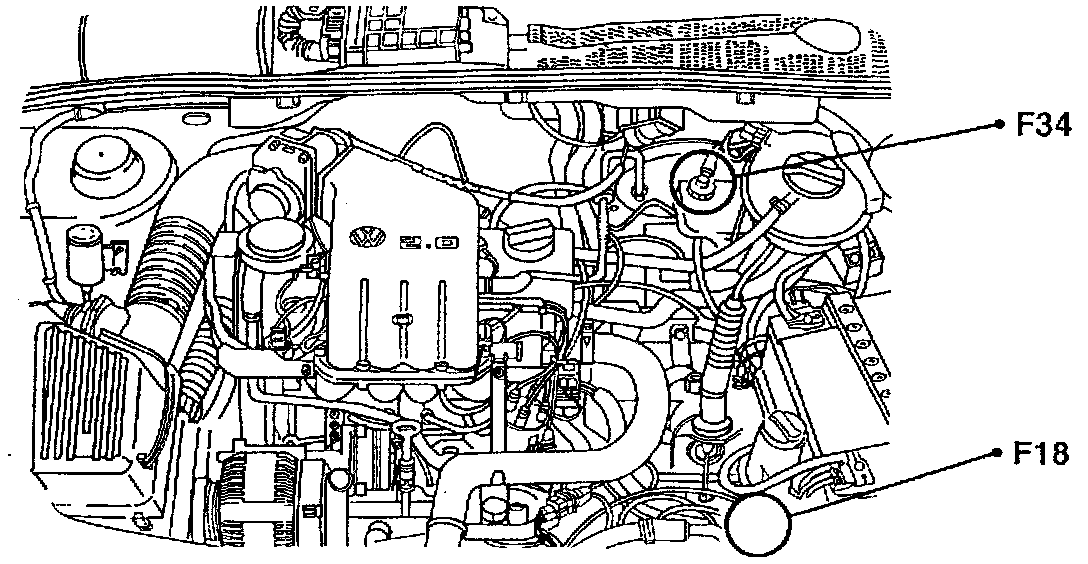

Component Location View
F18:

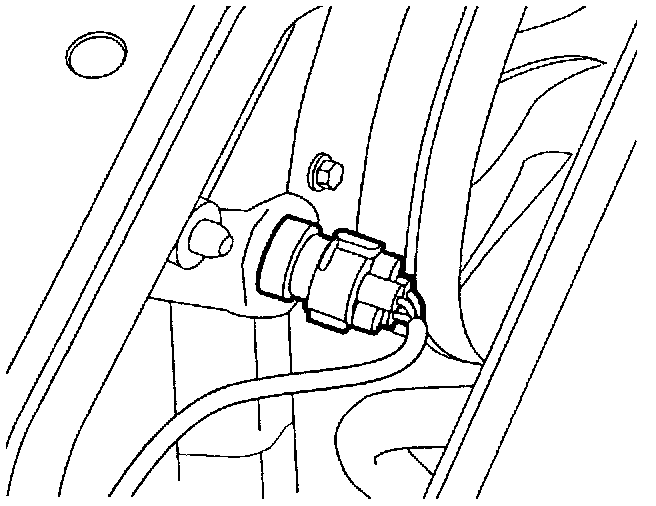

Component View
F18 Coolant Fan Control (FC) Thermal Switch
- On radiator, upper left near fan shroud
Component Location View
Component View
F18 Coolant Fan Control (FC) Thermal Switch
- On radiator, upper left near fan shroud
