Home >> Volkswagen >> 2001 >> Cabrio GL (1V7) L4-2.0L (ABA) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> From 09/1994 >> Measuring Value Block (Function 08) >> Evaluating Measure Value Blocks >> Display Group 005

Display Group 005

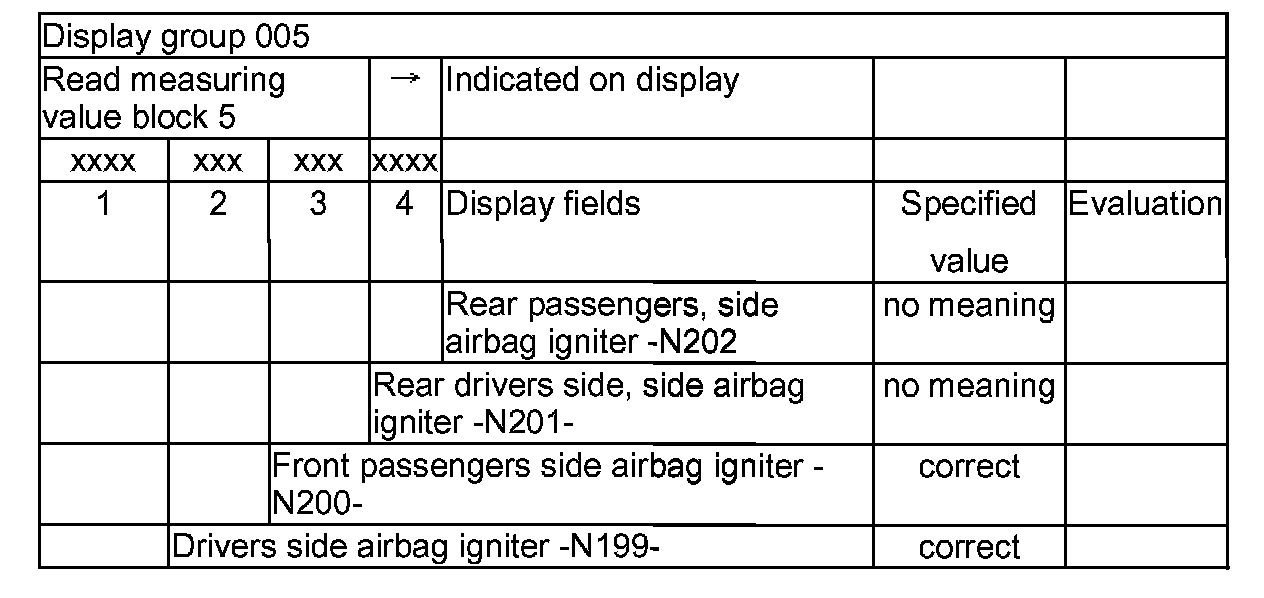

Display Group 005:

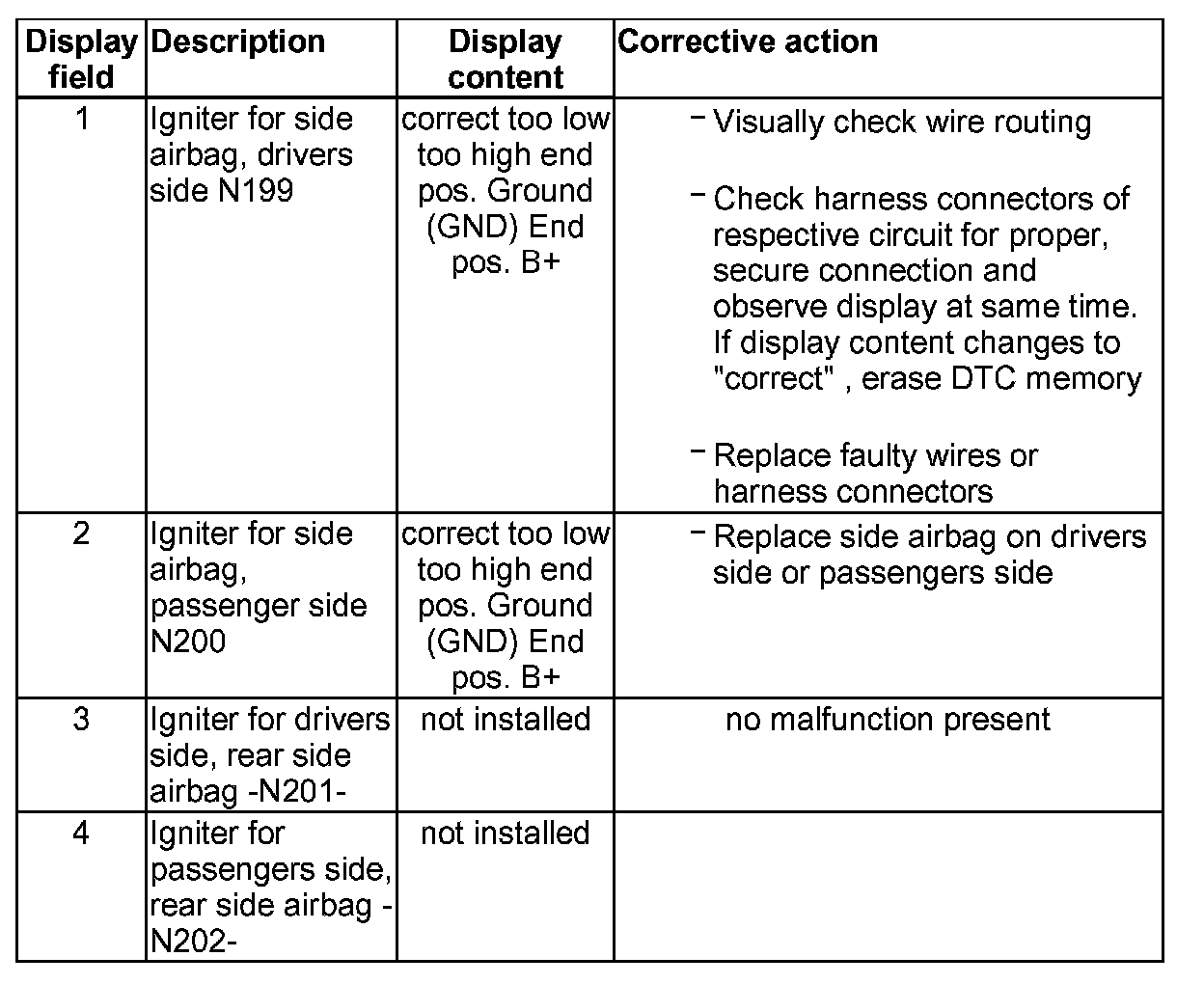

Evaluation Of Display Group Number 005:
