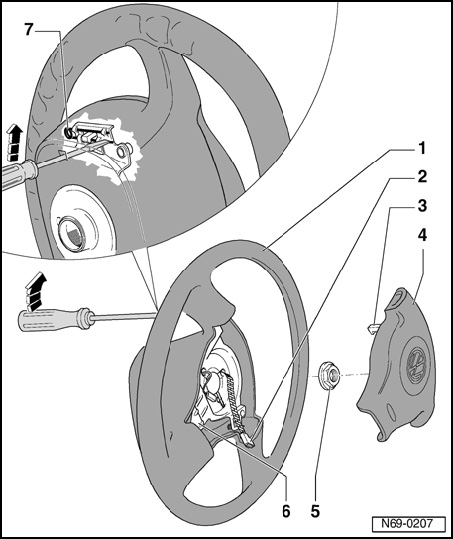

Drivers Side Airbag Module - Assembly Overview

Drivers Side Airbag Module 03.98 --> - Assembly Overview







1 - Steering wheel
2 - Connector
3 - Catches
- are disengaged from back side of steering wheel

4 - Airbag unit
5 - Nut
- 50 Nm

6 - Securing plate
7 - Clip
