Display Groups 10 to 29 (Ignition), Evaluation
Measuring Value Blocks, Display Groups 10 To 29, 212 (Ignition), Evaluating

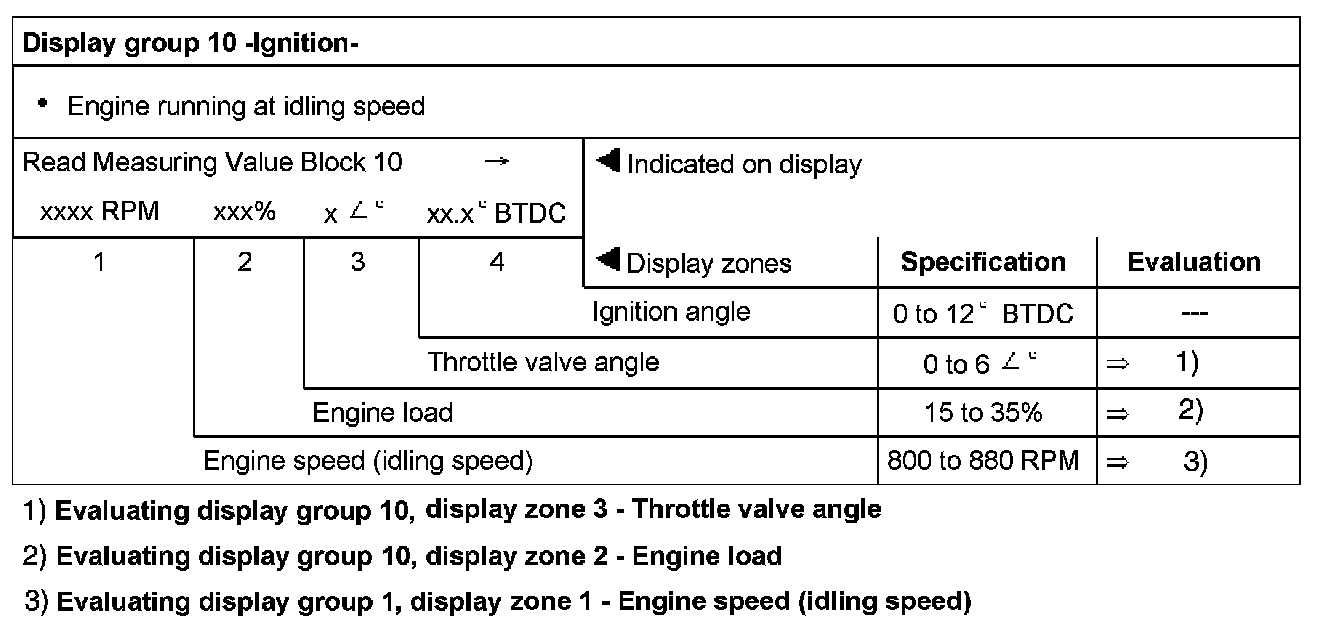

Display group 10 -Ignition-
Display Group 10:

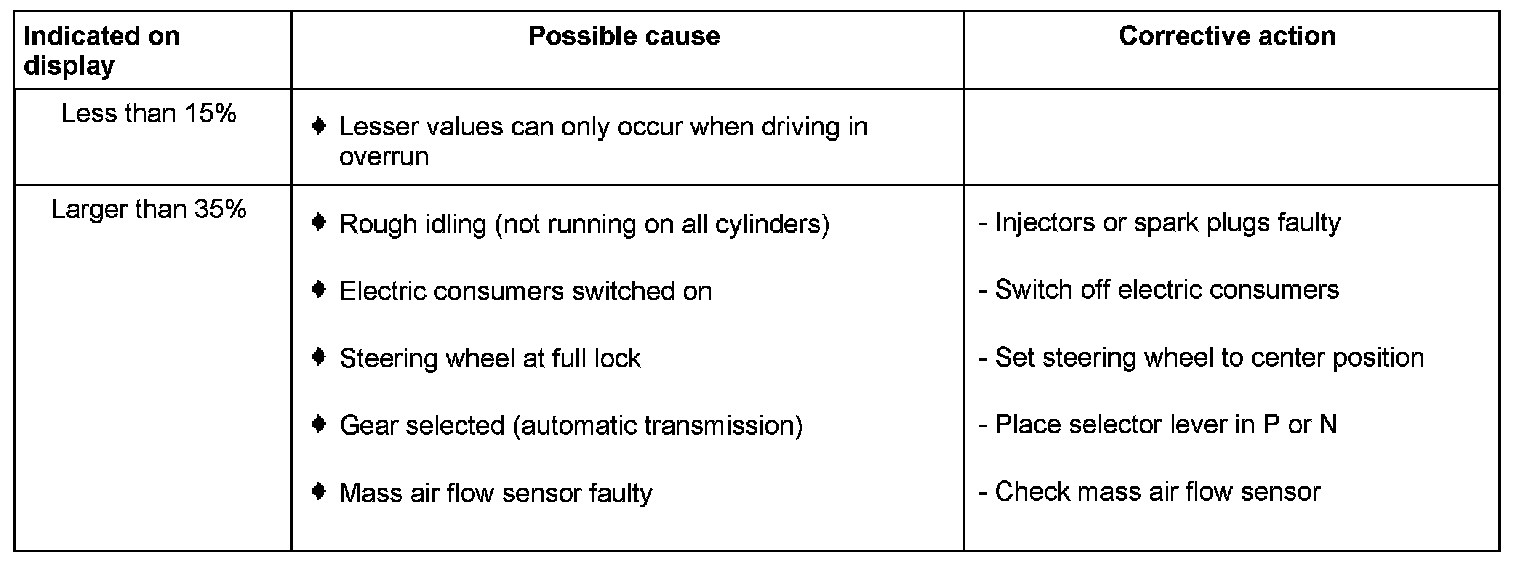

Evaluating display group 10, display zone 2 - Engine load
Evaluating Display Group 10, Display Zone 2:

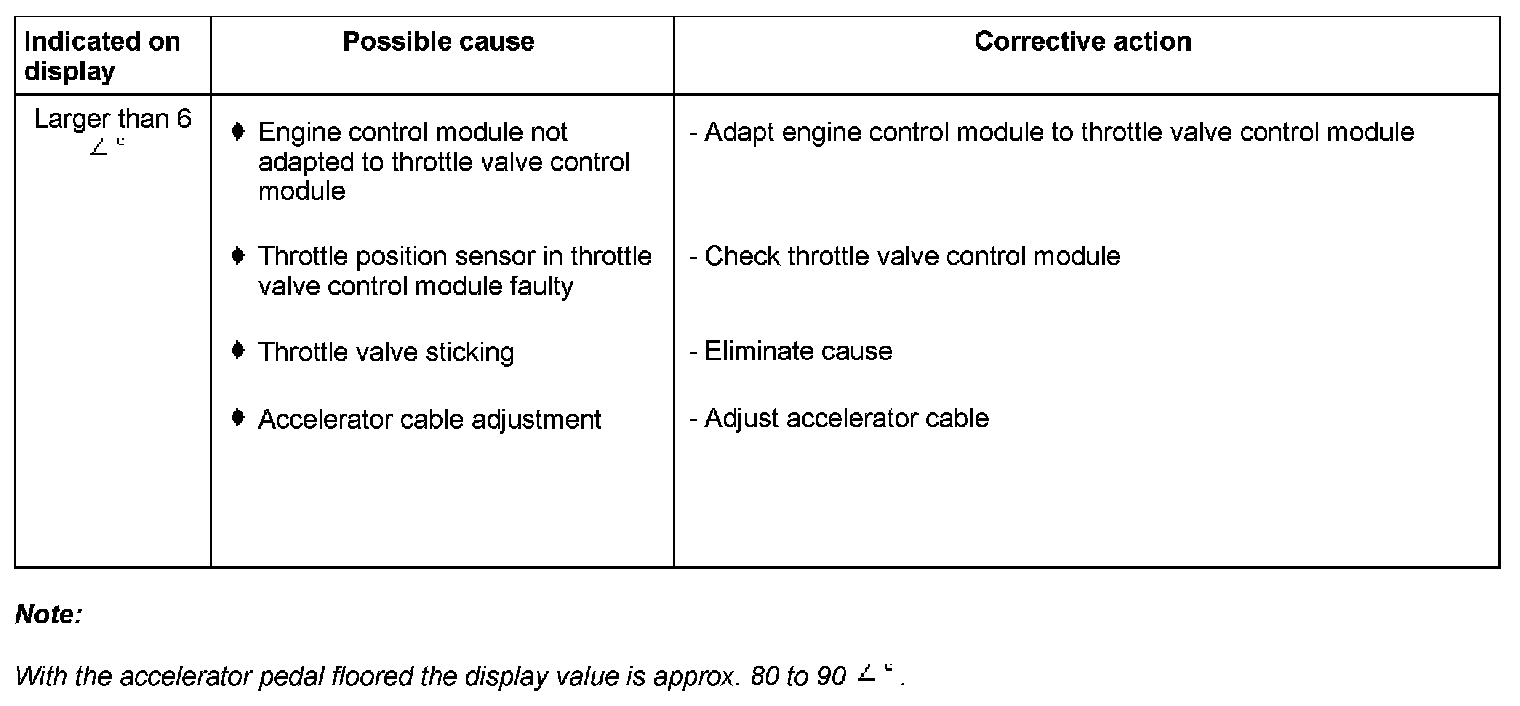

Evaluating display group 10, display zone 3 - Throttle valve angle
Evaluating Display Group 10, Display Zone 3:

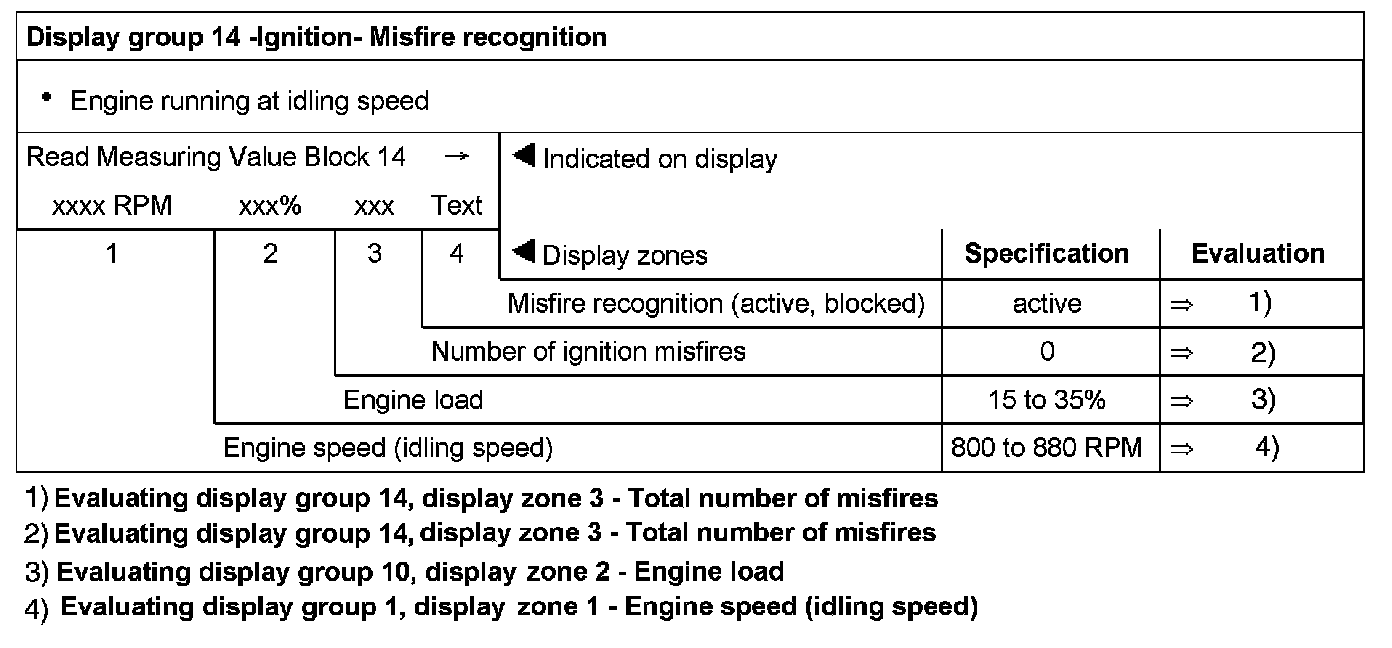

Display group 14 -Ignition- Misfire recognition
Display Group 14:

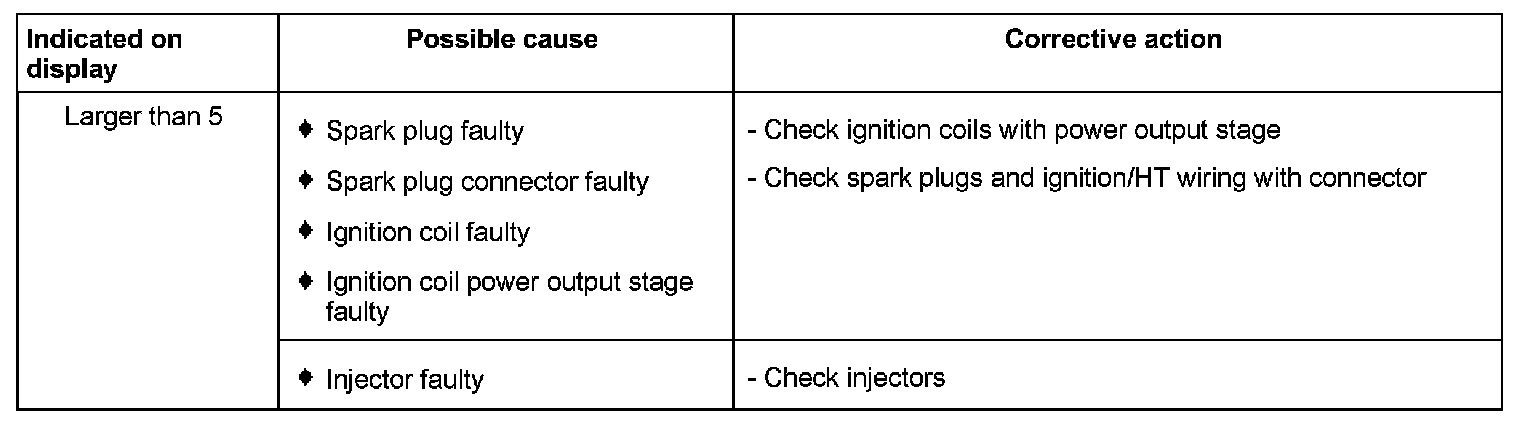

Evaluating display group 14, display zone 3 - Total number of misfires
Evaluating Display Group 14, Display Zone 3:
Display group 22 -Ignition- Knock control
Display Group 22:
Display group 23 -Ignition- Knock control
Display Group 23:

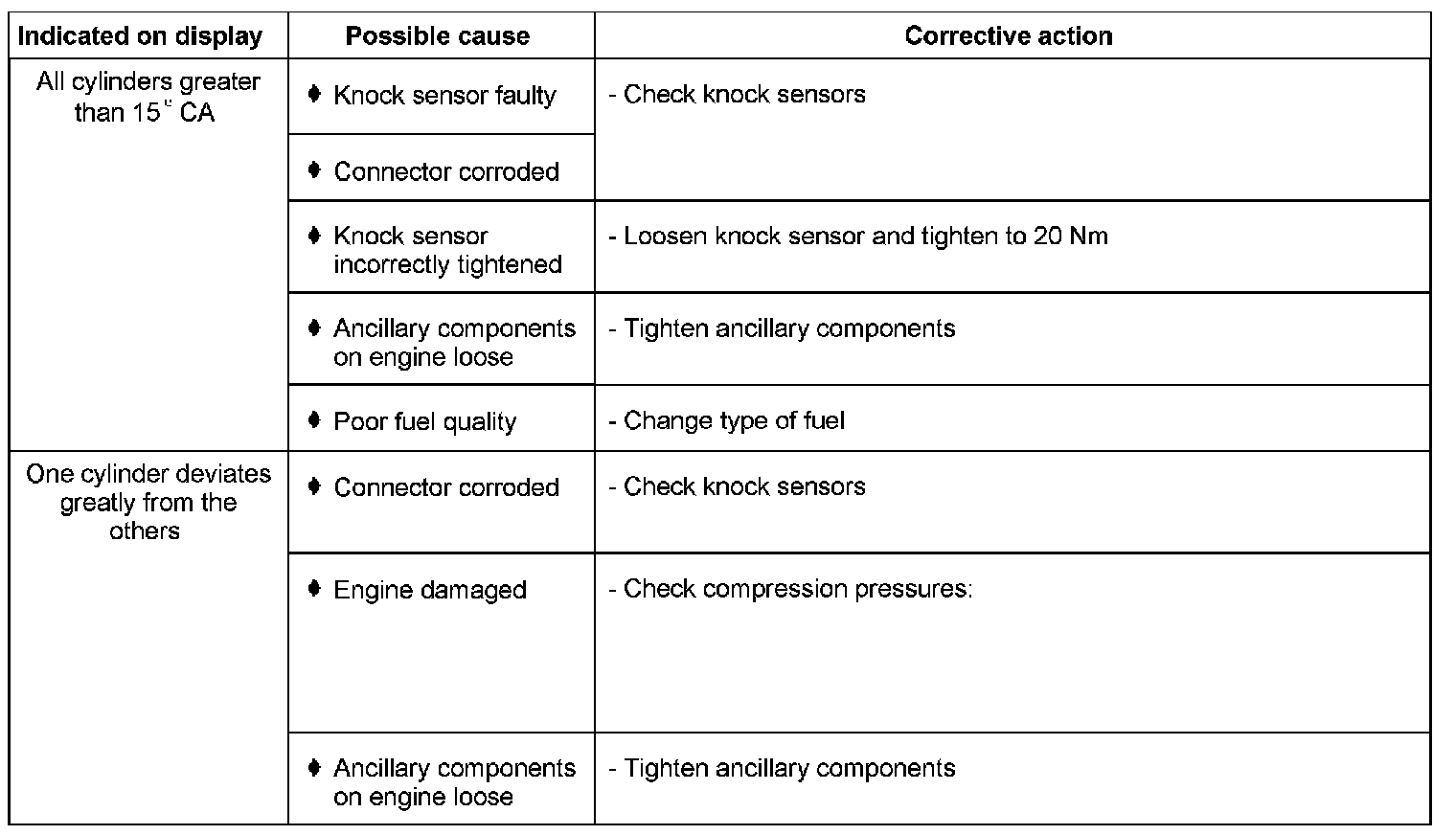

Evaluating display groups 22/23, display zones 3 and 4 - Retardation of ignition
