Turn Signal Bulb: Service and Repair

Front turn signal bulb, replacing

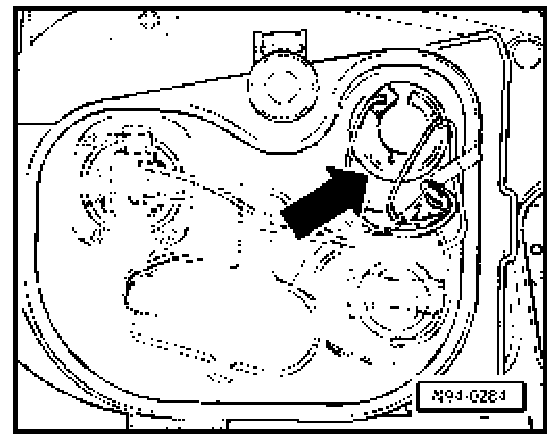

- Disengage spring clip -arrow- and remove sealing cap.

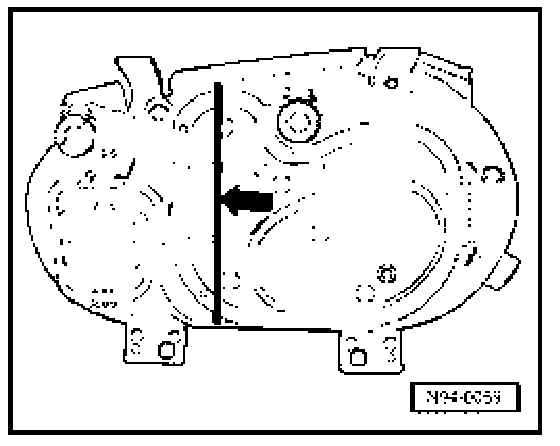

- Turn bulb holder -arrow- to left and pull out of housing.

- Remove bulb from bulb holder. Installation is in reverse order of removal.

Note:

Bulb holder must engage in housing during installation.

- Always check turn signal function after installing new bulb.
