Changing Headlight Setting, Left & right-Hand Drive From 10/98
Changing headlight setting for left-hand driveiright-hand driveNotes:
- The headlight changeover kit consists of two foils.
- Pay attention to different part numbers for the headlight changeover kits for left-hand drive to right-hand drive, and for right-hand drive to left-hand drive.
- Clean the headlight lenses before the changeover
The headlight changeover from left-hand drive to right-hand drive is performed in the same manner as the changeover from right-hand drive to left-hand drive.
The following procedure describes the headlight changeover from right-hand drive to left-hand drive.
Changeover of left headlight on left-hand drive vehicles
- Remove protective covering from assembly foil.

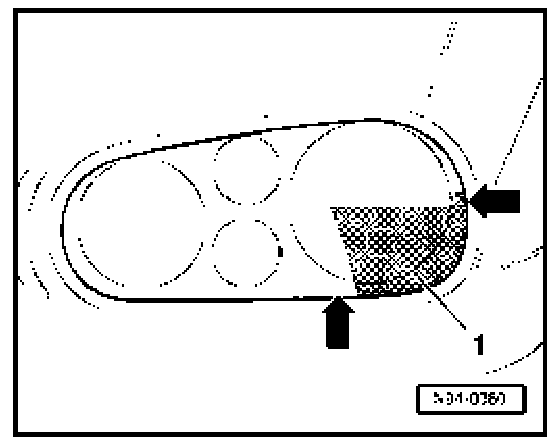

- Align assembly foil at left headlight -arrow- and adhere self adhesive assembly foil together with deflector foil onto headlight.
- Remove assembly foil from headlight. Deflector foil -1- remains on headlight.
Changeover of right headlight on left- hand drive vehicles
- Remove protective covering from assembly foil.
- Align assembly foil at right headlight -arrow- and adhere self adhesive assembly foil together with deflector foil onto headlight.
- Remove assembly foil from headlight. Deflector foil -1- remains on headlight.
