Fog/Driving Lamp Bulb: Service and Repair

Fog light bulb, replacing

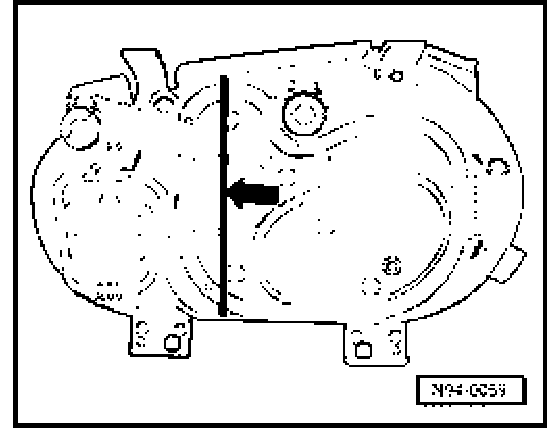

- Disengage spring clip -arrow- and remove sealing cap.

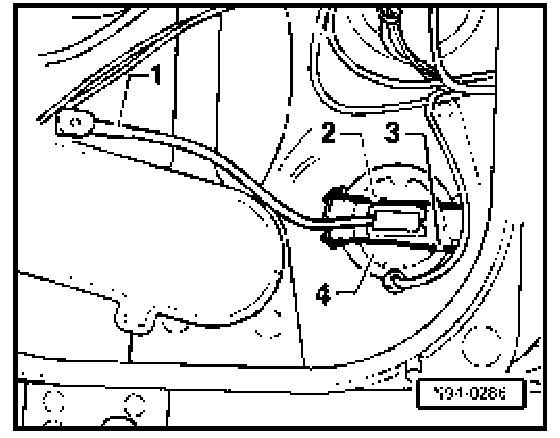

- Disconnect harness connector -1- at bulb.

- Disengage retaining clip -2- by pushing on locking lugs -3-.

- Pull bulb -4- out of reflector.

Do not touch glass during installation.

- Insert new bulb so lugs on laminated plate align with grooves in reflector.

- Attach harness connector -1-.

- Attach sealing cap.

- Always check headlight setting after installing new bulb.
