Checking Oil Pump Axial Clearance
Checking Oil Pump Axial Clearance

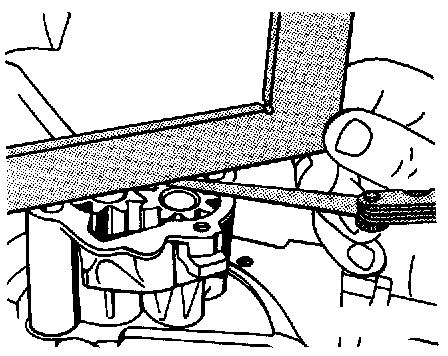

Checking oil pump axial clearance
• Wear limit: 0.15 mm (0.0059 in.)
