Cabrio GL (1V7) L4-2.0L (ABA)
>>
Repair and Diagnosis
>>
Diagrams
>>
Fuse and Fusible Links
>>
Fuse/Relay Panel
>>

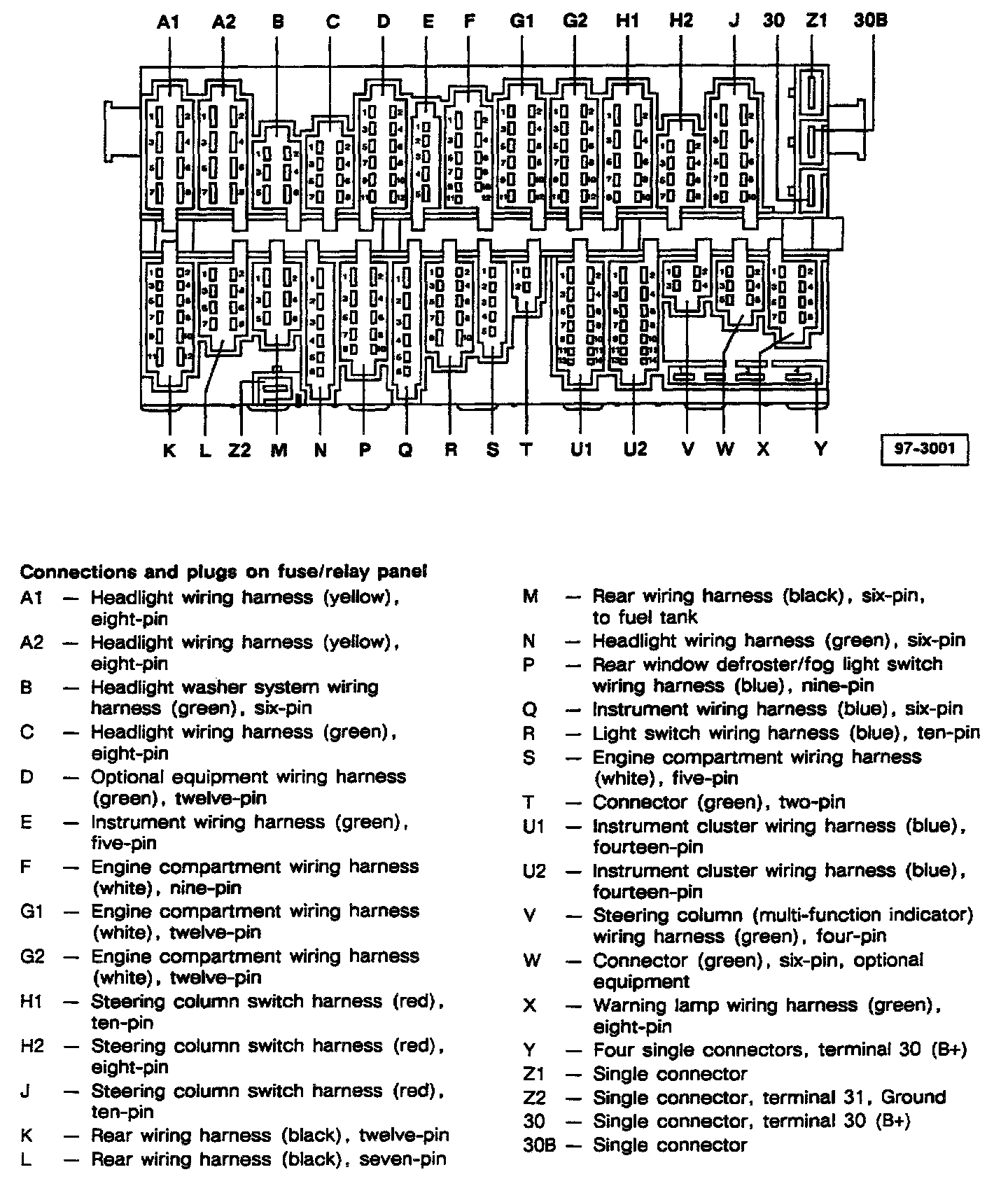

Multi-Pin Connector Wiring
Multi-Pin Connector Wiring
Multi-Pin Connector Wiring:
