Home >> Volkswagen >> 2001 >> Cabrio GL (1V7) L4-2.0L (ABA) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Intake Manifold >> Lower Intake Manifold

Lower Intake Manifold

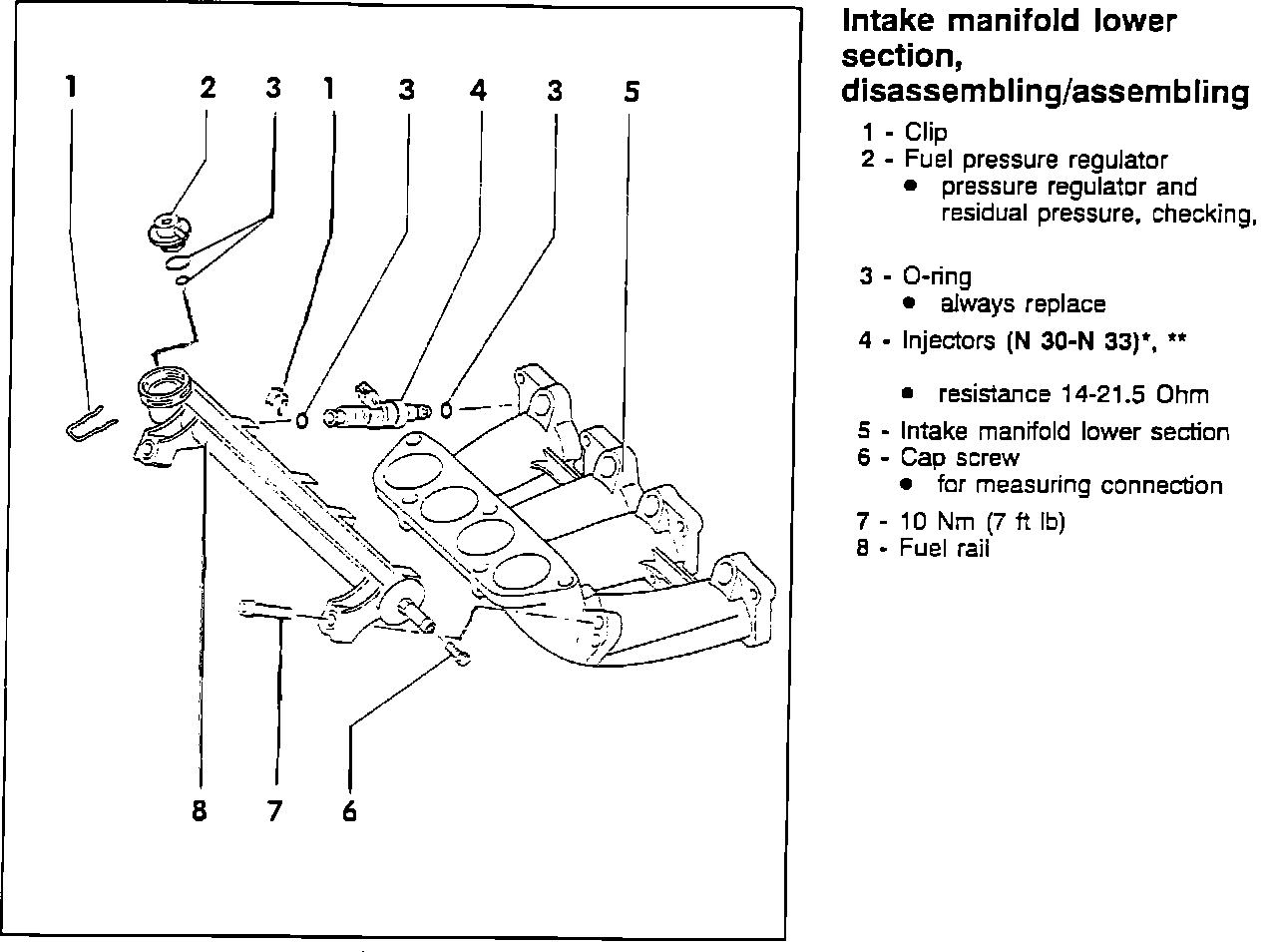

Intake Manifold Lower Section:

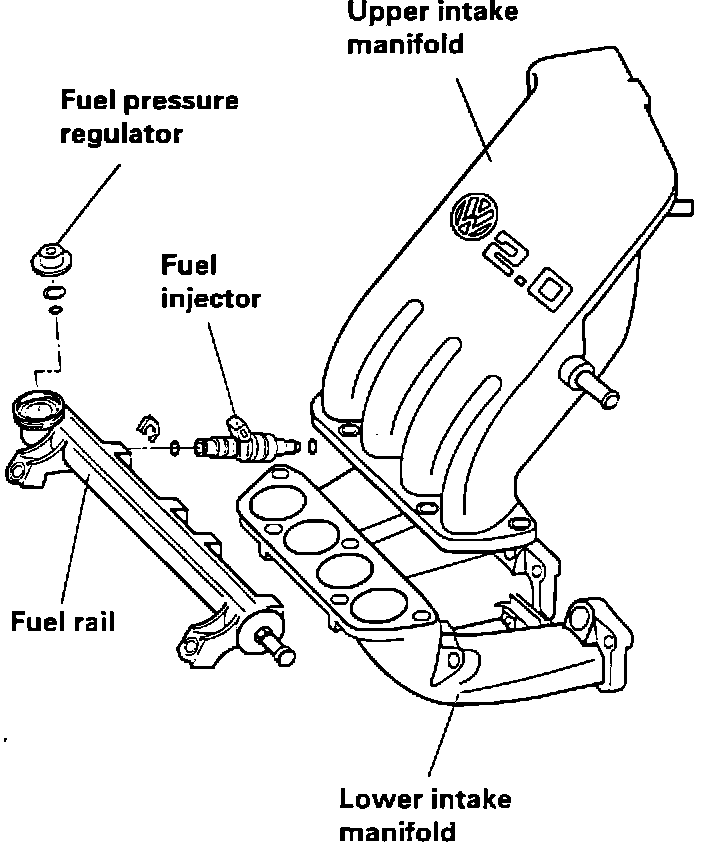

Fuel Rail And Related Components:
