Home >> Volkswagen >> 2001 >> Cabrio GL (1V7) L4-2.0L (ABA) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Test Tables >> 13A: (Navigation System Only) Coding Bridge

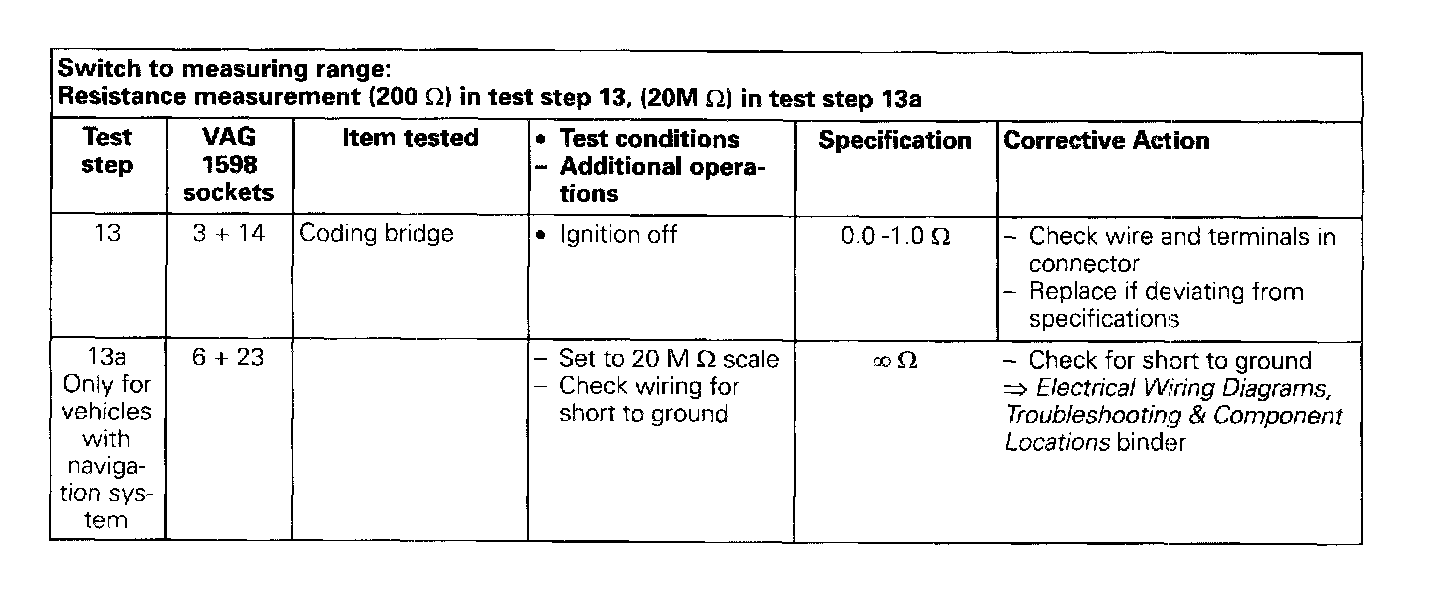

13A: (Navigation System Only) Coding Bridge
