Multi-Pin Connector With Terminal Assignment

Multi-Pin Connector With Terminal Assignment

Note:
^ All terminals not listed are currently not assigned and must never be connected to other components!





Terminal assignment of connectors for voltage supply and On Board Diagnostic (OBD) with scan tool VAG 1551
Terminal 4 = Ground (terminal 31)
Terminal 16 = Positive (terminal 30) via S12
Terminal 7 = K-wire via connection in instrument cluster wiring to control module -J104- terminal 7

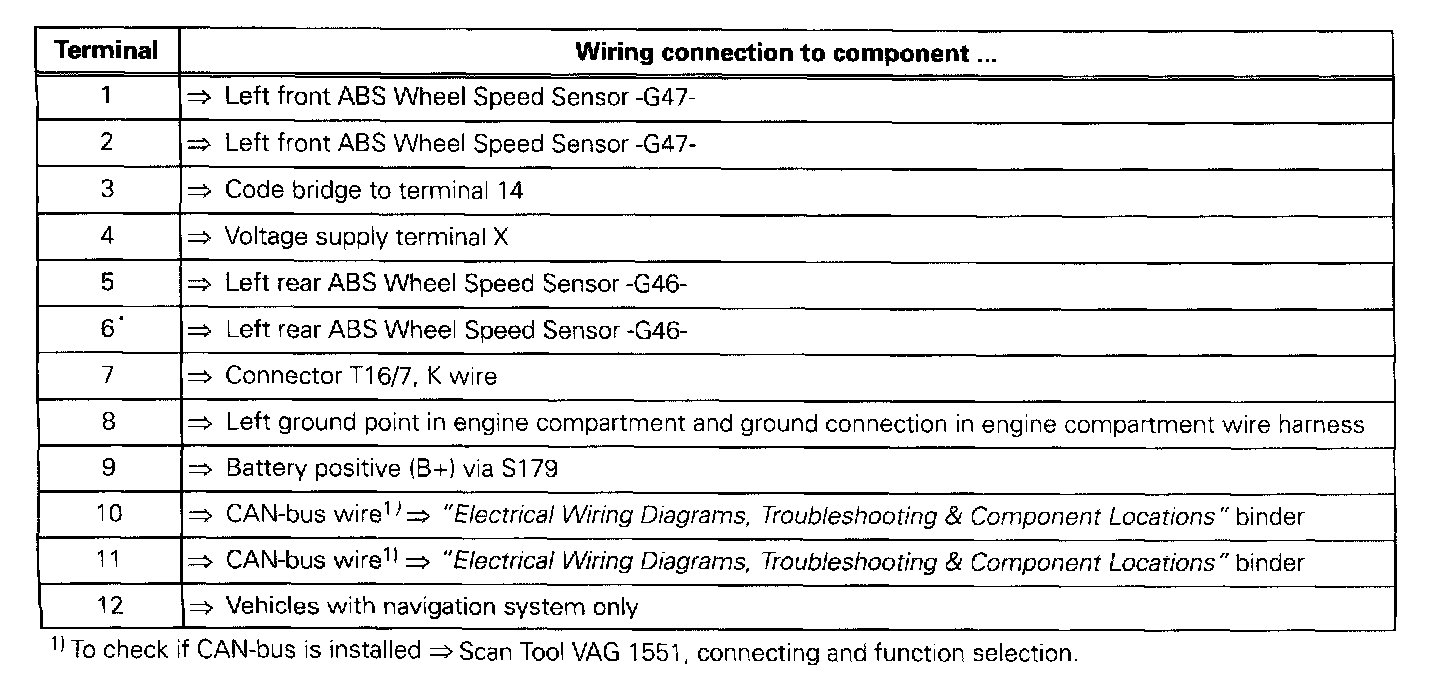

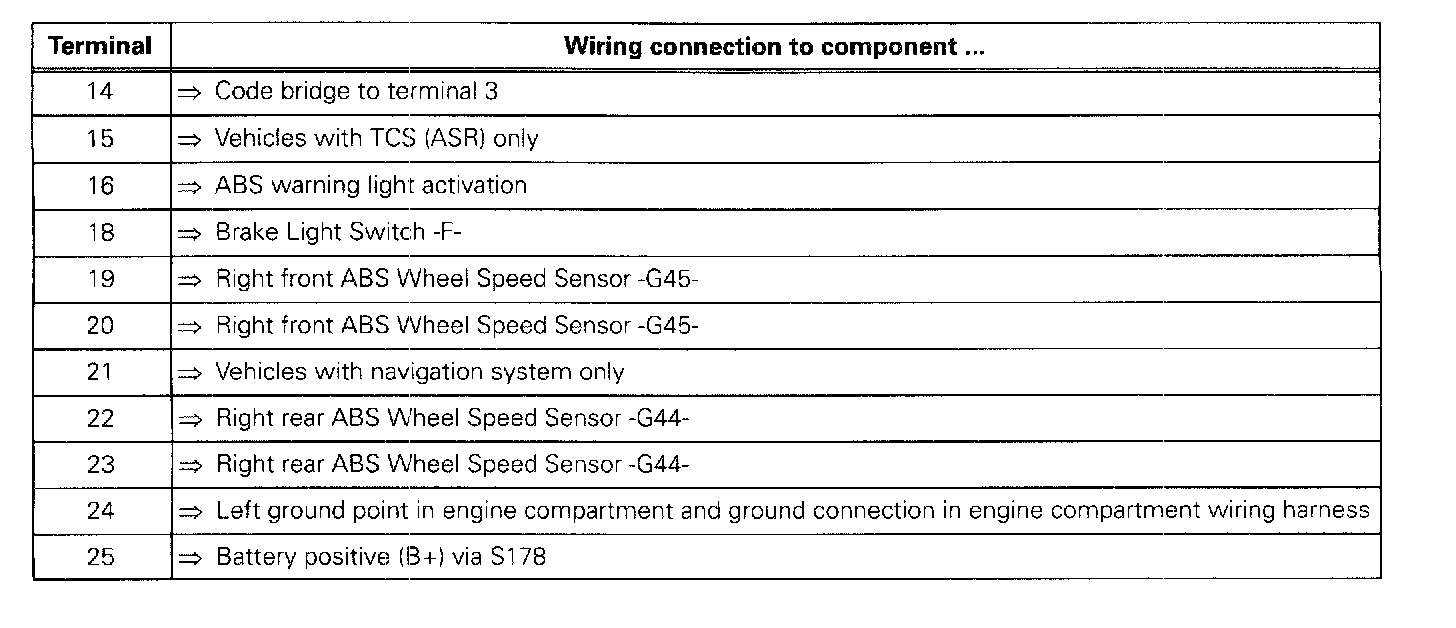

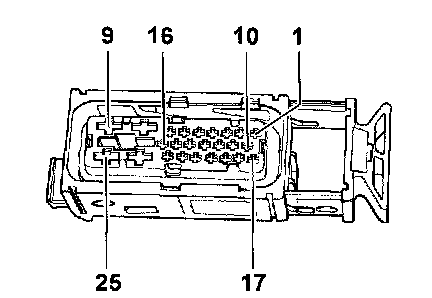

Connector T25 terminal assignment for wiring harness/Control Module -J104-

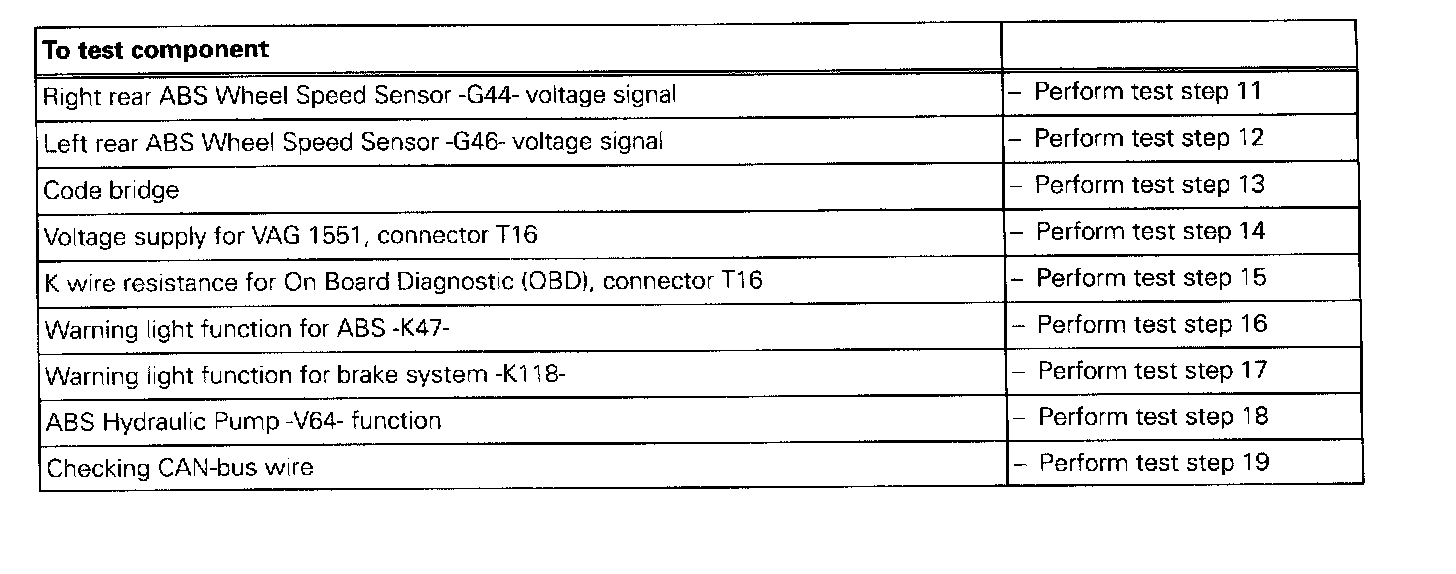

Test Step Overview
