Rear Seatbench, Removing and Installing



Rear Seatbench, Removing And Installing

Removing

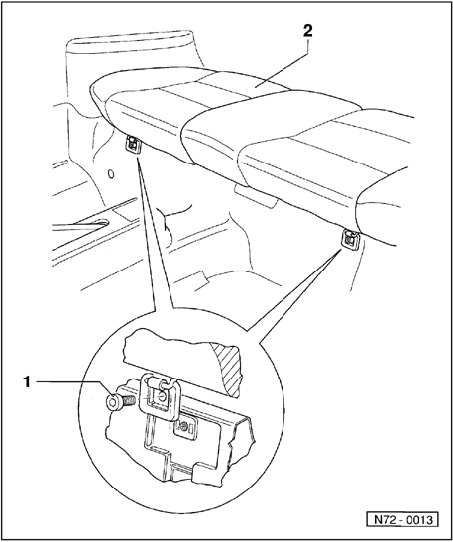

- Remove socket head bolts - 1 - and remove seatbench - 2 -.







Installing
- Installation is reverse order of removal.
