Backrest Heating Element, Removing and Installing

Backrest Heating Element, Removing And Installing

CAUTION:
- Vehicles with leather equipment must not be fitted with standard (cloth covered seats) heater elements.
- There is a danger of seat heating overheating.

Removing
- Remove seat.
- Remove backrest.
- Remove backrest cover.

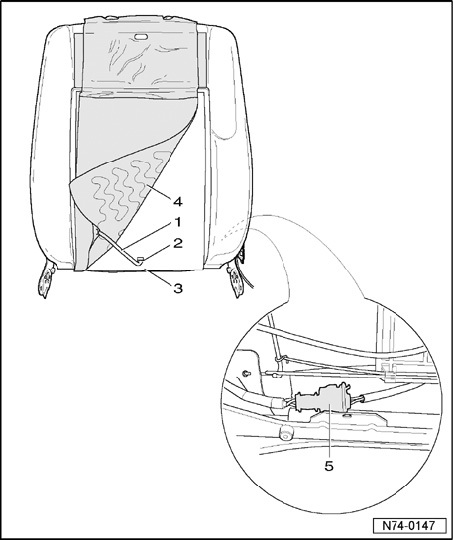

- Disconnect harness connector - 5 -.
- Guide cable - 1 - through opening - 2 - in center part of cushion - 3 - and remove heating element - 4 -.







Installing
Installation is reverse of removal
