Oil Reservoir, Electric/Hydraulic Convertible Top - Assembly Overview

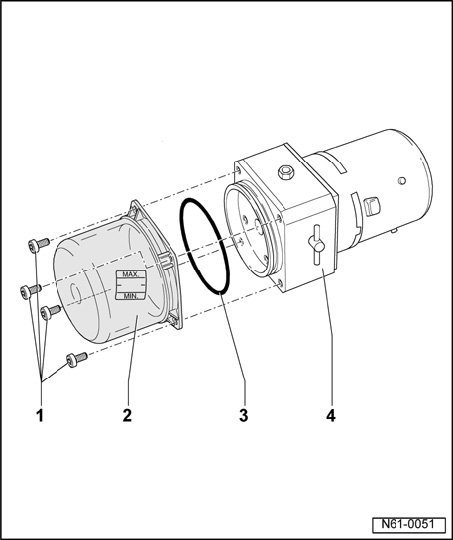

Oil Reservoir, Electric-/hydraulic Convertible Top - Assembly Overview







1 - Torx bolts
- 2 Nm
- Always replace bolts

2 - Oil reservoir
3 - Sealing ring
- Always replace
- Sealing ring is contained in repair set

4 - Hydraulic pump
