Rear Lid Positioning Element, Removing and Installing

Rear lid positioning element, removing and installing






- Unclip rear lid trim (hand grip secured with screw).

- Pull lock rod out of press button and remove bi-pressure line.

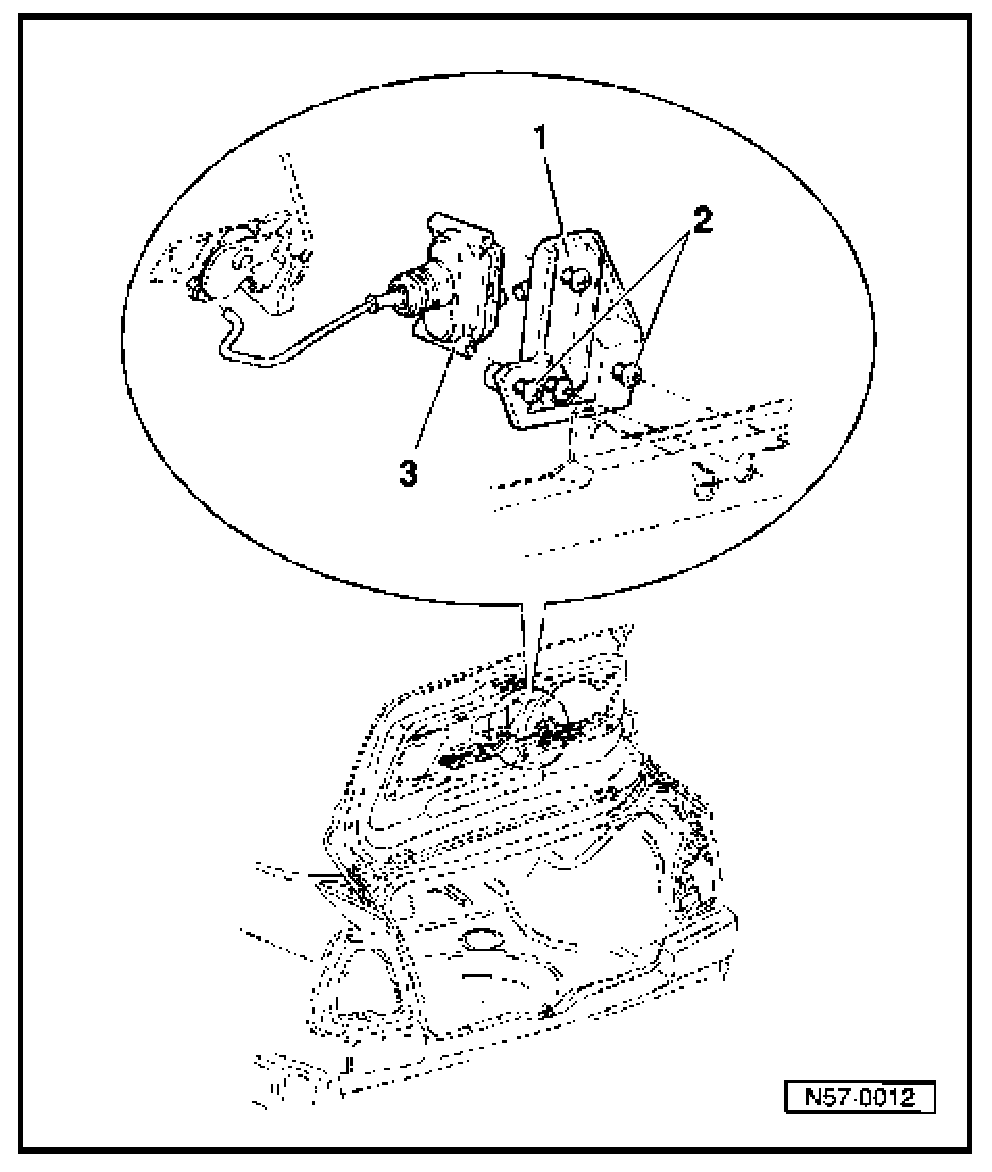

- Remove screws -2-.

- Pull out positioning element -3- with adapter -1- and lock rod from rear lid.
