Door Lock Actuator, Removing And Installing

Door Lock Actuator, Removing And Installing

Removing
- Remove door trim and partially remove door insulation.

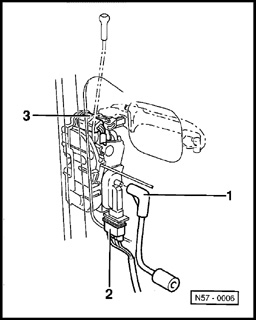

- Disconnect bi-pressure line - 1 - and multi-pin connector - 2 - and - 3 - from actuator.
- Remove door lock with actuator.







- Turn door lock switch into "closed position"
- Remove Torx bolt T15 - 1 -.







- Disengage actuator - arrows - and remove from door lock.







- When removing actuator, locking lever - 1 - slides out of plunger - 2 -.

Installing

NOTE: When installing, locking lever - 1 - must engage again in plunger - 2 -.







- Rest of installation is reverse order of removal.

NOTE: If door lock function is not ensured after replacing actuator, door lock with actuator must be replaced completely.
