Coupling and Junction Fitting For BI-Pressure Line Connector

New coupling and junction fitting for bi-pressure line connector

New couplings and junctions have gradually been introduced for actuators and bi-pressure pump.

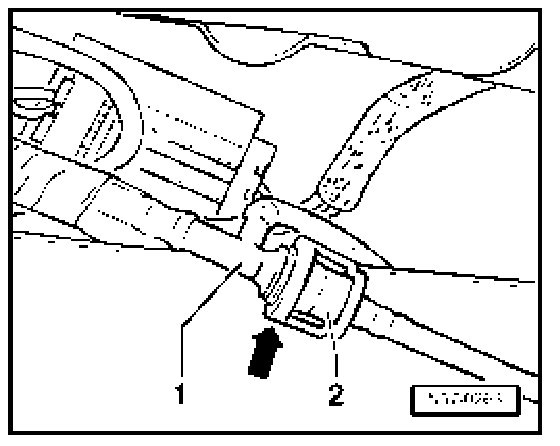

- Release coupling -1- by pressing forward ring -arrow- together. Ensure coupling is correctly engaged when connecting.

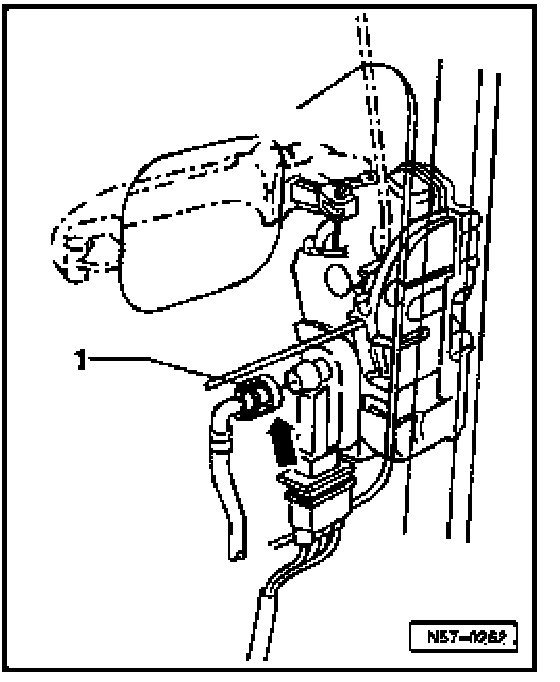

Junction fitting -1- is also connected via these couplings.

- Release coupling -2- by pressing forward ring -arrow- together. Ensure coupling is correctly engaged when connecting.
