B-Pillar Trim

B-pillar Trim, Removing And Installing

Removing
- Remove side trim.

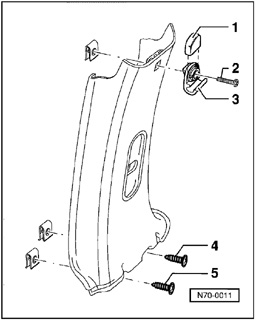

- Unclip cap - 1 -, remove bolt - 2 - (40 Nm) and remove guide stop - 3 -







- Unclip cover cap - 1 -, remove screw - 2 - and remove coat hook - 3 -.

Tightening torque bolt - 2 -: 40 Nm







- Remove screws - 4 - and - 5 - and remove B-pillar trim.

Installing
- Installation is reverse order of removal.
