Trunk / Liftgate Release Lever: Service and Repair

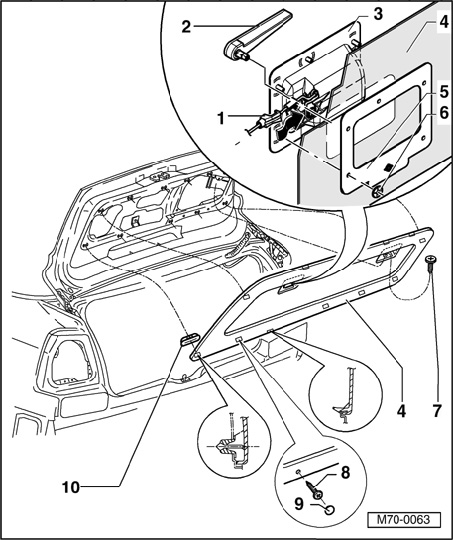

Trunk Escape Handle, Removing And Installing

Removing
- Unclip up clip - 1 - and release cable bowden - arrow -
- Clamping washer - 6 - (Qty. 6).
- Remove frame - - 5 -
- Remove handle support - 3 - from rear lid trim.







- Release escape handle - 2 - from handle support - 3 -.

Installing
- Installation is reverse order of removal.
