Rear Lid Lock up to 03.98 , Assembly Overview

Rear Lid Lock 03.98-->, Assembly Overview

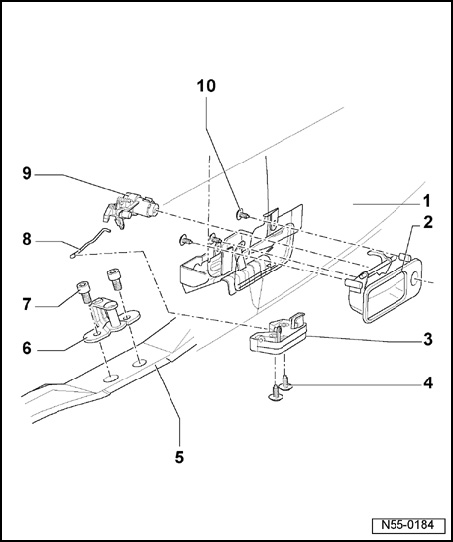

1 - Rear lid
2 - Handle
3 - Lock
4 - Screw
- 20 Nm

5 - Trim panel
6 - Lock plate
- Adjusting - within oversized holes
- Gap dimensions

7 - Bolt
- 20 Nm

8 - Operating rod
9 - Lock cylinder housing
10 - Torx screw
- 4 Nm
