Rear Lid Lock , Removing and Installing

Rear Lid Lock 03.98 >, Removing and Installing

Removing
- Unclip rear lid trim (handle is secured with bolt).
- Disconnect connector from lock.

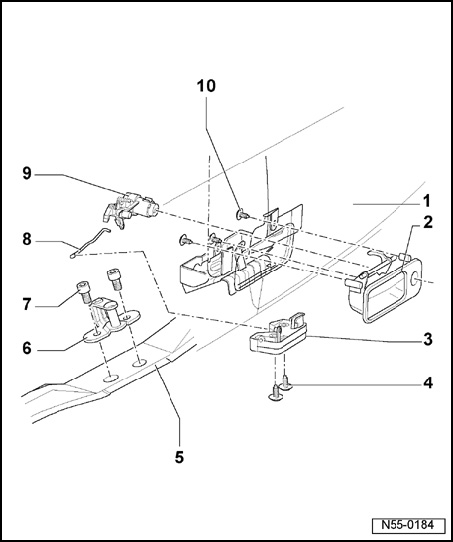

- Unclip operating rod - 8 -, remove bolt - 4 - and remove lock from rear lid.







Installing
- Installation is reverse of removal.
