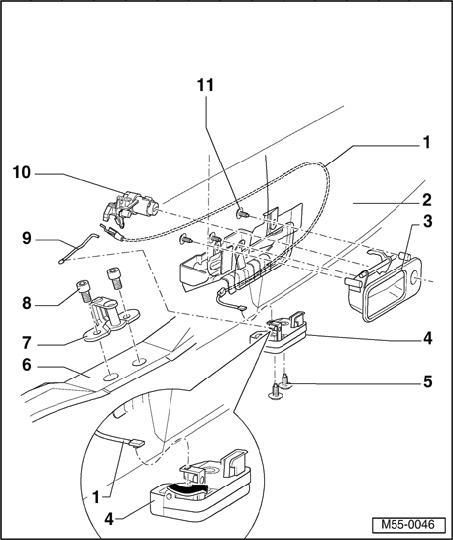

Rear Lid Lock, Assembly Overview

Rear Lid Lock, Assembly Overview 06.01-->







1 - Bowden cable
- Removing
- Turn Bowden cable in clockwise and unclip cable bowden from lock - 3 -, before removing lock trim.

2 - Rear lid
3 - Handle
4 - Lock
5 - Bolt (counter sunk)
- 20 Nm

6 - Cross panel
7 - Lock plate
- Adjusting, within oversized holes
- Gaps/mating lines

8 - Bolt
- 20 Nm

9 - Operating rod
10 - Lock cylinder housing
11 - Torx screw
- 4 Nm
