Lock Cylinder Housing, Removing and Installation

Lock Cylinder Housing, Removing And Installing

Removing
- Remove trim for rear lid.

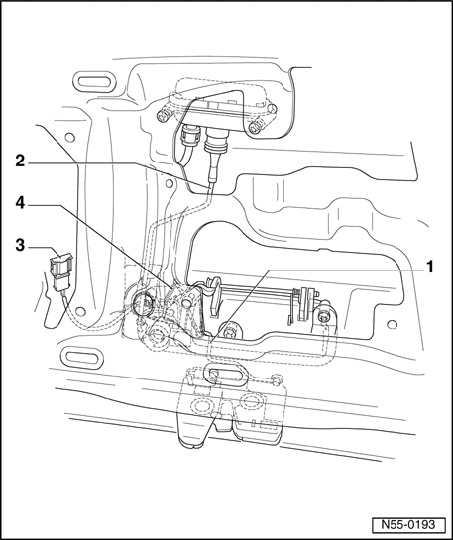

- Disconnect connector - 3 -.







- Unclip operating rods - 1 - and - 2 - on lock cylinder housing.

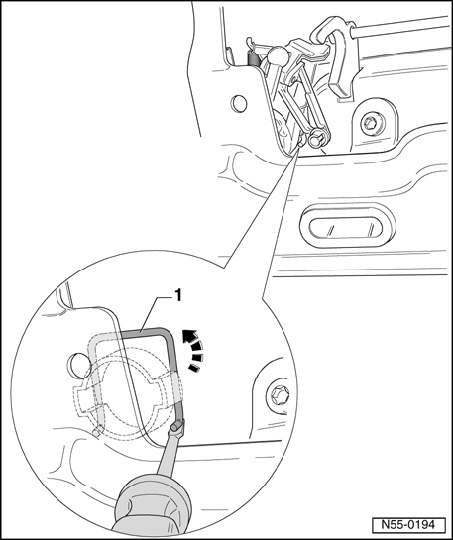

- Lift retaining clip - 1 - using a screwdriver.







NOTE:
- Lower spring mount may be damaged during following work procedure.
- Lock cylinder housing must then be replaced.
- Installation must therefore be performed carefully

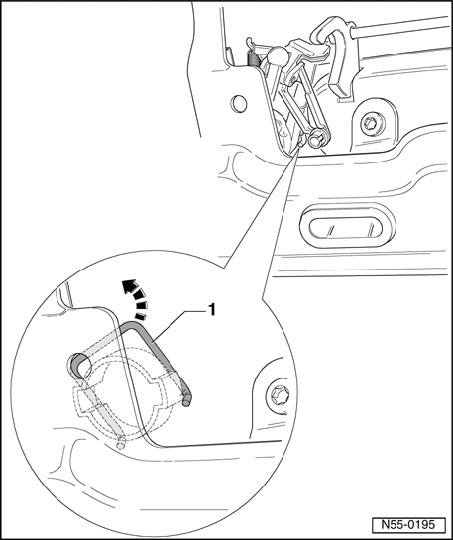

- By moving screwdriver, lift retaining clip - 1 - over mount for lock cylinder housing.

NOTE: For ease of illustration lock cylinder housing is omitted from close up showing levering-out of retaining clip.







- Remove lock cylinder housing out of handle and rear lid.







Installing

- Insert retaining clamp - 1 - into handle.







- Insert lock cylinder housing into handle and engage with an audible click.
- Clip in operating rods - 1 - and - 2 -.
- Connect harness connector - 3 -.







- Continue in reverse order and perform functional test.
