Handle and Lock Cylinder Housing, Assembly Overview

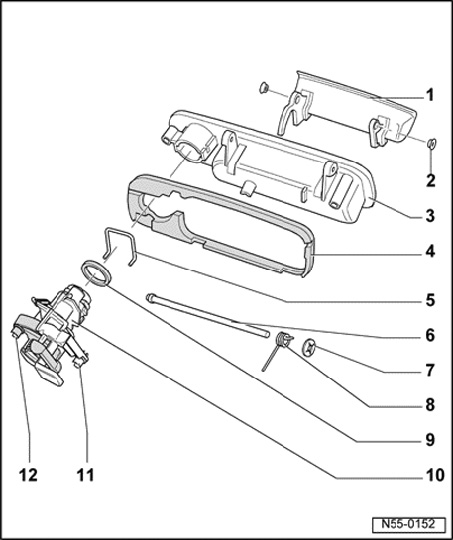

Handle And Lock Cylinder Housing, Assembly Overview







1 - Handle
2 - Guide sleeves
3 - Handle recess
4 - Seal
5 - Retaining clip
6 - Pin
7 - Circlip
8 - Compression spring
9 - Seal
10 - Lock cylinder housing
11 - Linkage clip
- For rear lid lock

12 - Linkage clip
- For positioning motor
