Rear Lid Trim, Removing and Installing

Rear Lid Trim, Removing And Installing

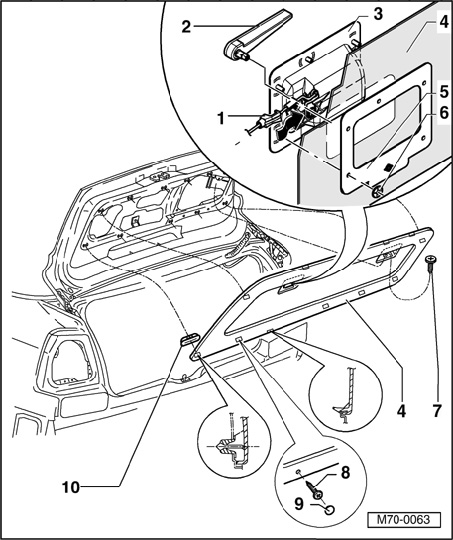

Removing
- Remove screws - 7 -.
- Unclip trim - 4 - carefully from rear lid in area of handle molding and take off, not to damage cable bowden







- Release cable bowden from lock







Installing
- Installation is reverse order of removal.
- Check mounting clips - 10 -, replace if necessary and insert into holes in rear lid.
- Position trim - 4 - and clip cable bowden into lock







- Secure trim - 4 - with screws - 7 -, - 8 - and put cover - 9 - on to screw - 8 -.
