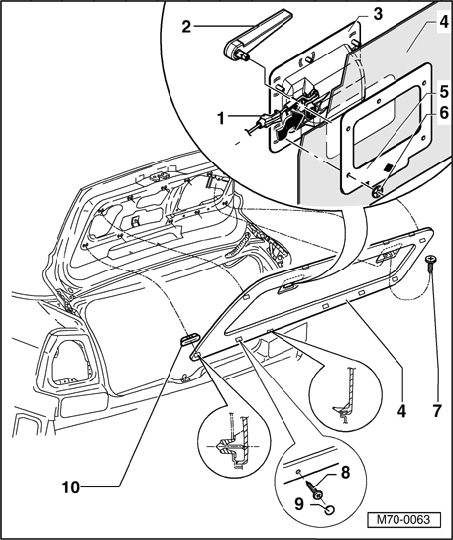

Rear Lid Trim, Assembly Overview

Rear Lid Trim, Assembly Overview







1 - Clip
2 - Escape handle
3 - Handle support
4 - Trim
5 - Frame
6 - Clamping washer
- Qty. 6

7 - Screw
8 - Screw
9 - Cover
10 - Mounting clip
