Electronic Accelerator Control (E-Gas), Checking

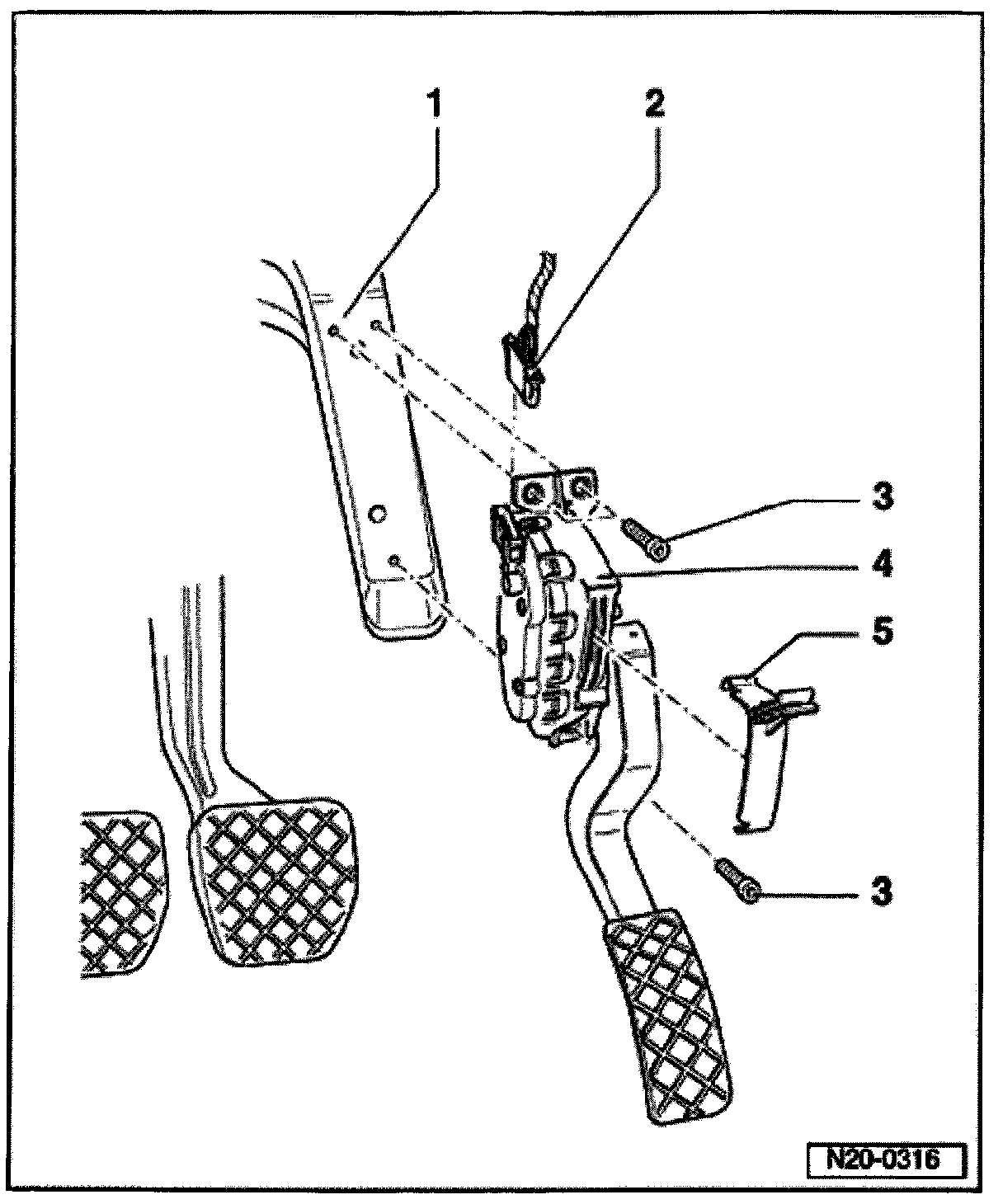

Electronic Accelerator Control (E-Gas), Checking







1 - Bracket
2 - Connector
- Black, 6-pin
3 - 10 Nm
4 - Throttle Position (TP) sensor -G79- and -G185-
- Checking Testing and Inspection
- When removing remove footwell cover
5 - Retainer
- For footwell cover
- Clipped onto accelerator pedal
