Internal Oil Line

Internal oil line, removing and installing
Special tools and equipment

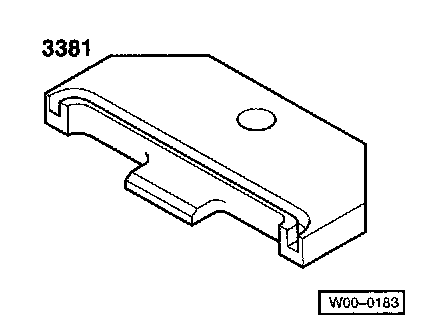

^ 3381 oil line installer

Removing
Remove the valve body.

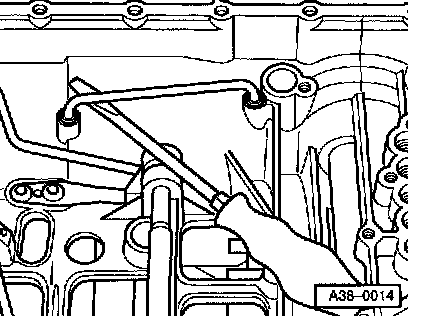

- Pry internal oil line off transmission housing using screwdriver.

Installing
- Replace O-rings.

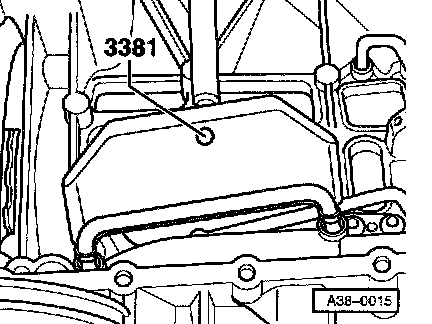

- Insert internal oil line into 3381 oil line installer.





- Using plastic hammer, knock oil line into transmission housing until tool makes contact.
^ Open side of 3381 oil line installer faces toward outside of transmission
^ Make sure that oil line is kept straight; knock both ends in evenly
- Fill with ATF, check ATF level and top off.
- Install the valve body.
