ATF Lines

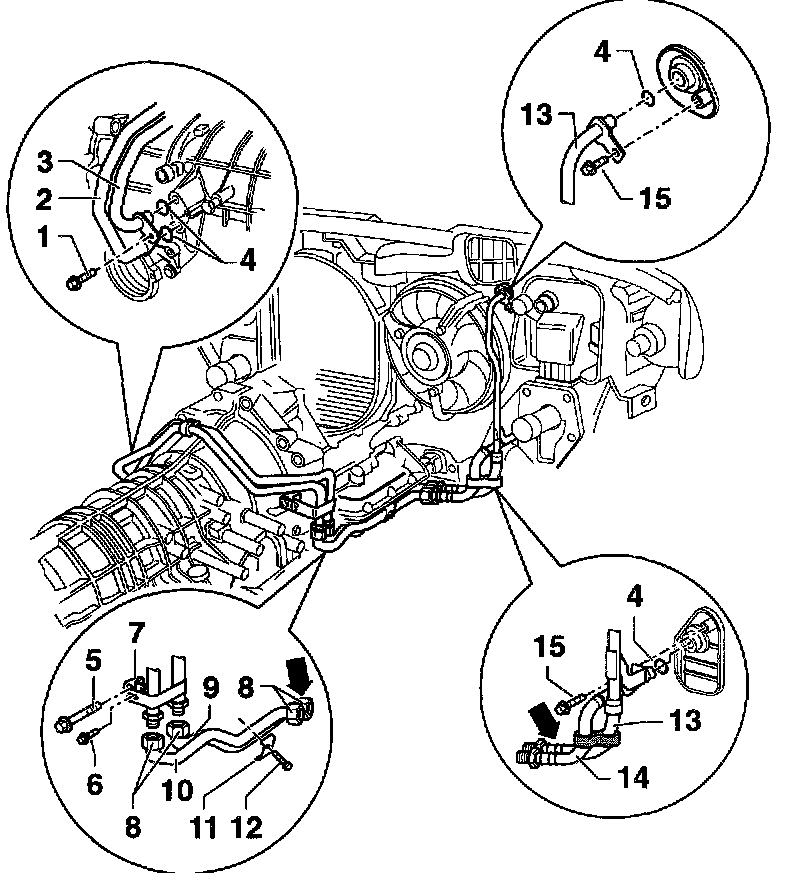

ATF lines, removing and installing





1. Bolt
^ 20 Nm (15 ft. lbs.)
^ Before tightening bolt, push line in up to stop by hand
2. ATF line
^ To ATF cooler
^ Note inscription on transmission housing
3. ATF line
^ From ATF cooler
^ Note inscription on transmission housing
4. O-rings
^ Always replace
^ Lubricate with ATF
5. Bolt
^ 65 Nm (48 ft. lbs.)
6. Bolt
^ 10 Nm (7 ft. lbs.)
7. Bracket
8. Union nuts
^ 30 Nm (22 ft. lbs.)
9. ATF line
^ To ATF cooler
^ Note colored markings (arrow)
10. ATF line
^ From ATF cooler
^ Note colored markings (arrow)
11. Clamp
12. Bolt
^ 10 Nm (7 ft. lbs.)
13. ATF line
^ To ATF cooler
^ Note colored markings (arrow)
14. ATF line
^ From ATF cooler
^ Note colored markings (arrow)
15. Bolt
^ 5 Nm (44 inch lbs.)
