Surface Variation

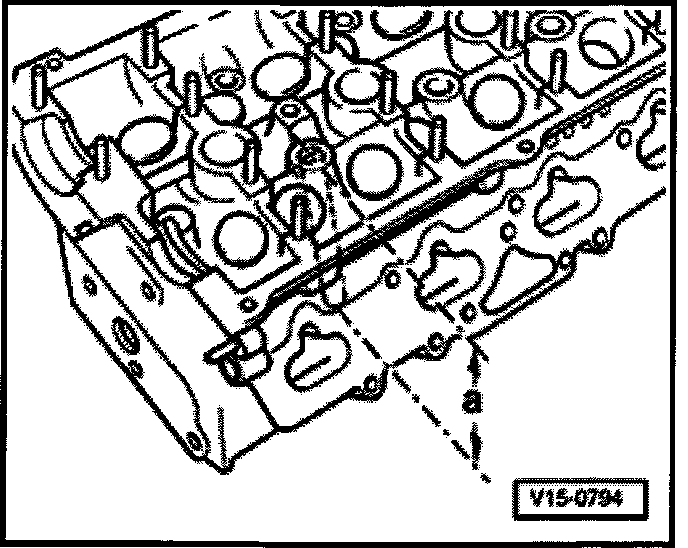

Reworking Cylinder Head Sealing Surface
- The dimension for reworking is measured through the holes for the cylinder head bolts
- (a) minimum 139.2 mm
