Evaporative Emissions System Components Removing and Installing

Evaporative emissions system components, removing and installing

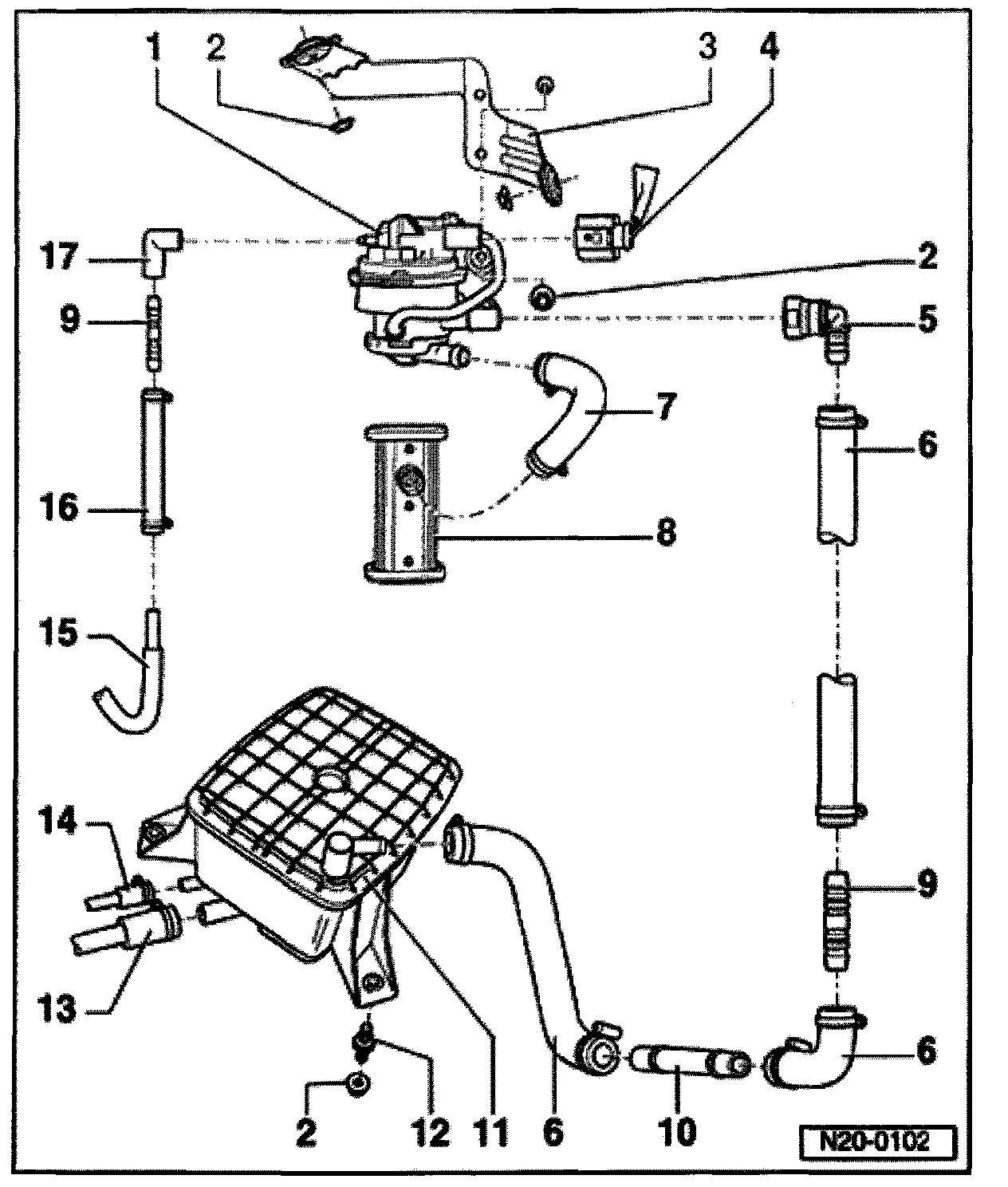

1 - Leak Detection Pump (LDP) -V144-
- In rear left wheel housing under the wheel housing liner
2 - 10 Nm
3 - Bracket for LDP
4 - Connector
- 3-pin
5 - Coupling
- Press together at front to release
6 - Connecting hose
- Pressure side
7 - Connecting hose
- Suction side
8 - Air filter for LDP
9 - Connector
10 - Connecting pipe
11 - EVAP canister
- In spare wheel well on floor
12 - 10 Nm
13 - EVAP canister purge regulator valve 1 -N80-
14 - Vent line
15 - Vacuum line
16 - Connecting hose
- Vacuum side
17 - Elbow
