Reading

Read measuring value block (function 08)

The measuring value block is divided into 6 display groups, each containing 4 display fields.
Use this function to observe various instrument cluster inputs.
- Input address word 17 "Instrument cluster" and then press -> button until "Select function xx" is shown in display.

Indicated on display:


Rapid data transfer HELP
Select function XX


- Press buttons -0- and -8- to select function "Read measuring value block".

Indicated on display:


Rapid data transfer Q
08 - Read Measuring Value Block


- Press -Q- button to confirm input.

Indicated on display:


Read measuring value block Q
Enter display group number XXX


- Using the Scan Tool (ST) button pad, enter the required display group number (following example shows display group 001).
- Press -Q- button to confirm input.

Indicated on display: (1.4 = Display fields)


Read measuring value block 1 ->
1 2 3 4


NOTE:
- Interpreting display groups and evaluating measured values in individual display fields tables beginning.
- With the printer switched on, the information on the display is printed out

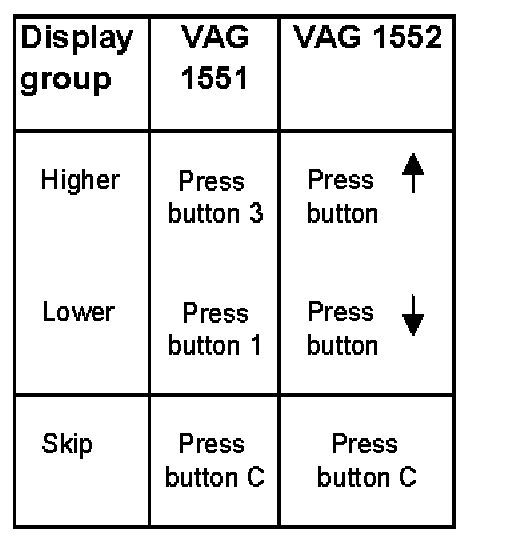

- To easily change between display groups, proceed as follows:







- Displayed after pressing -C- button.

Indicated on display:


Read measuring value block Q
Enter display group number XXX


- Enter alternate display group number as needed =tables beginning.

NOTE:
- Display fields always show actual values transmitted from senders and sensors. However, instrument cluster display values can differ from those in the display fields due to internal filtering.
- Other display groups are possible, but are not required for On Board Diagnostic program!
