Evaluating Display Group 125




Display Group 125:

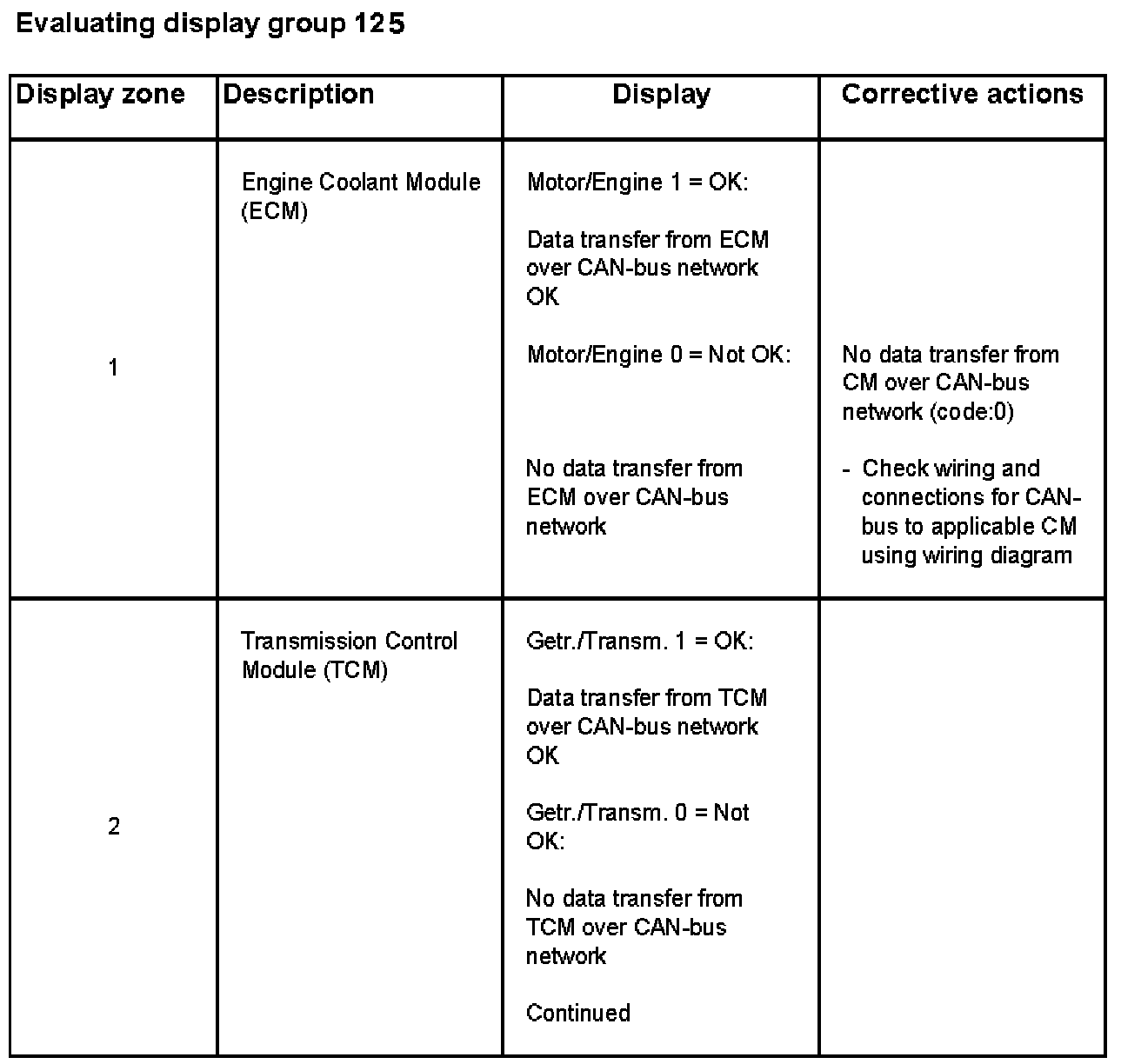

Evaluating Display Group 125 Part 1:

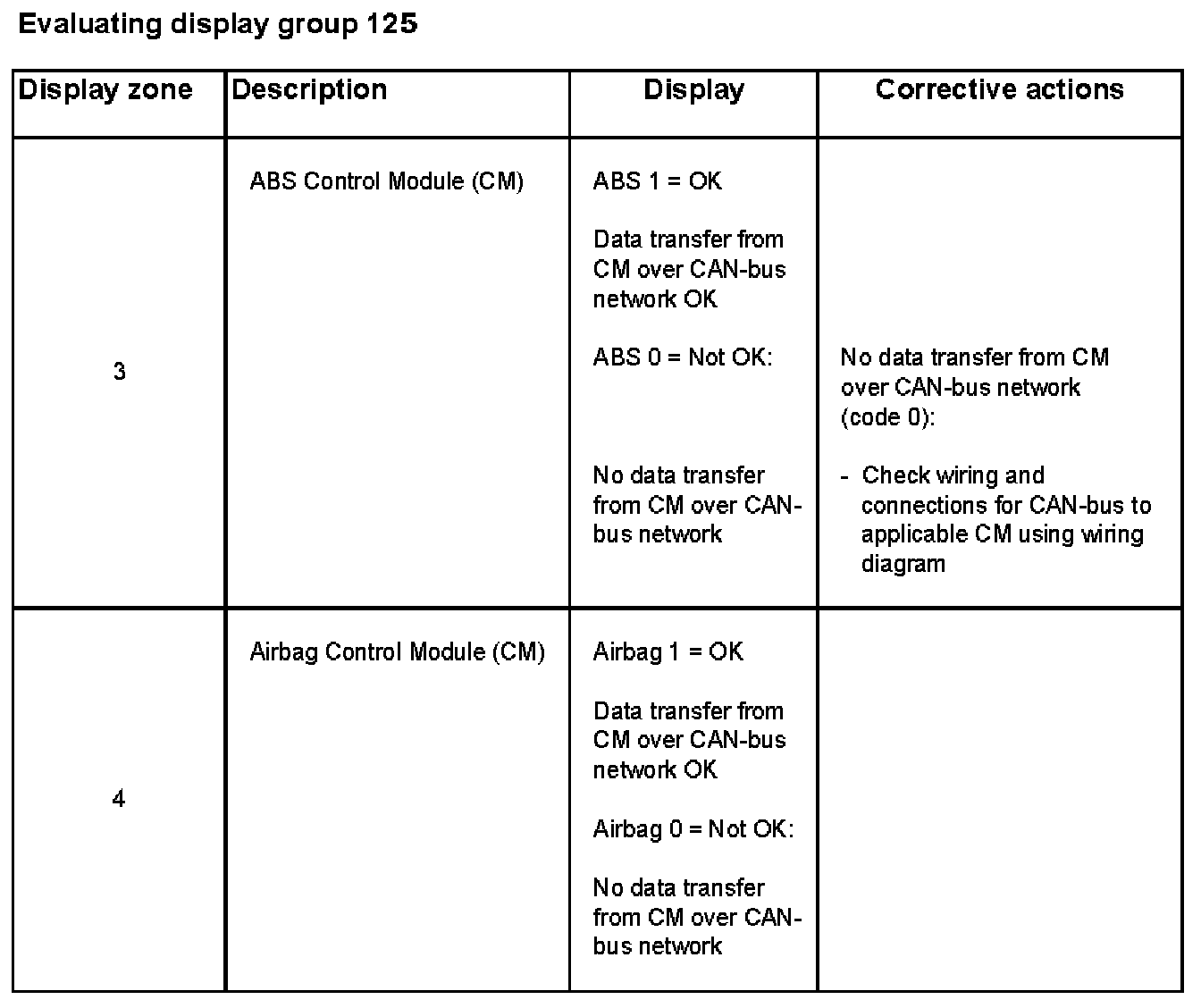

Evaluating Display Group Part 2:
