Electrical / Mechanical Repair

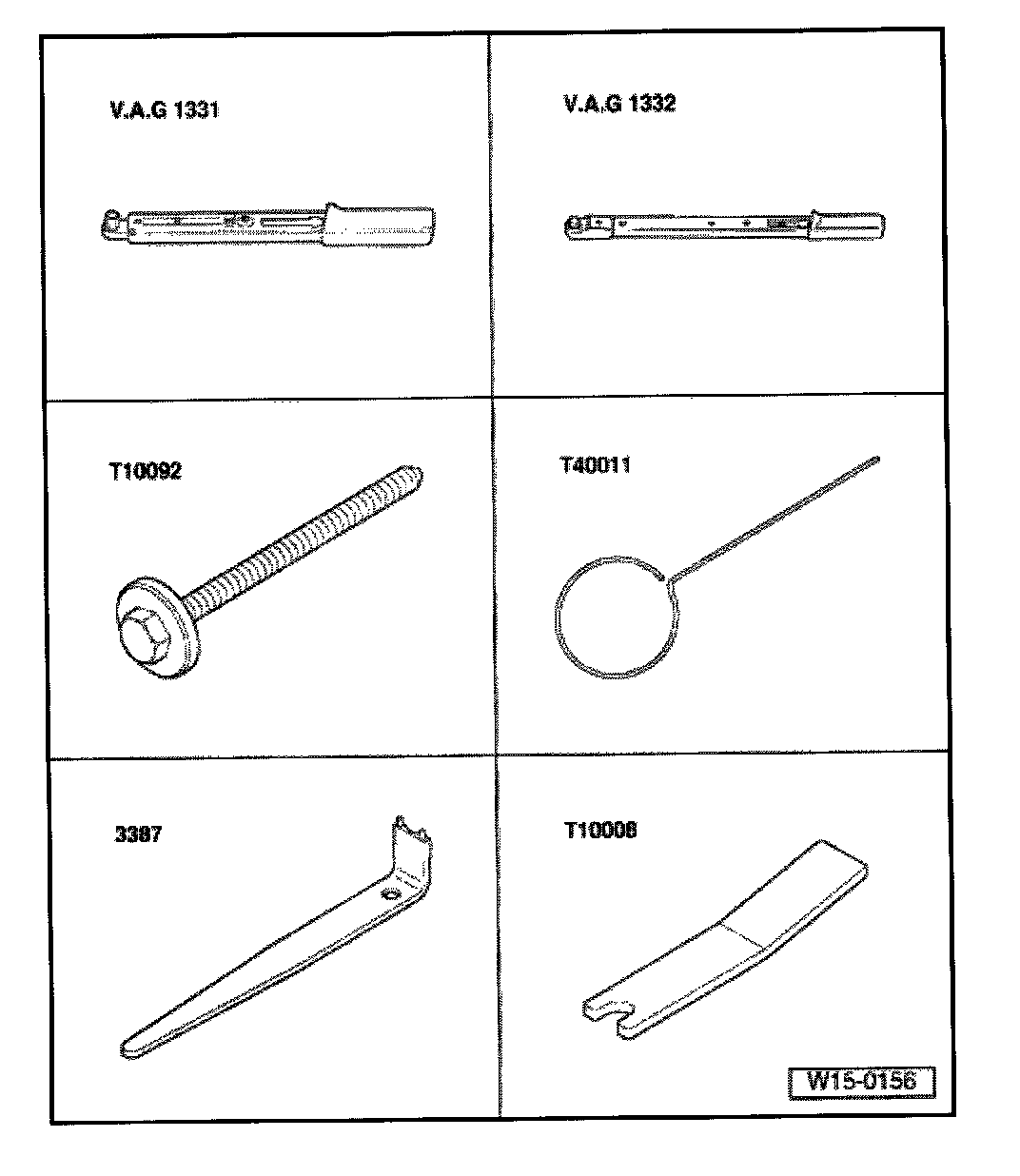

Special tools, testers, measuring instruments and auxiliary items required

Special Tools and Equipment:






- VAG 1331 Torque wrench (5 to 50 Nm)

- VAG 1332 Torque wrench (40 to 200 Nm)

- 3387 Pin wrench

- T10008 Locking plate
