Up to 09/2000

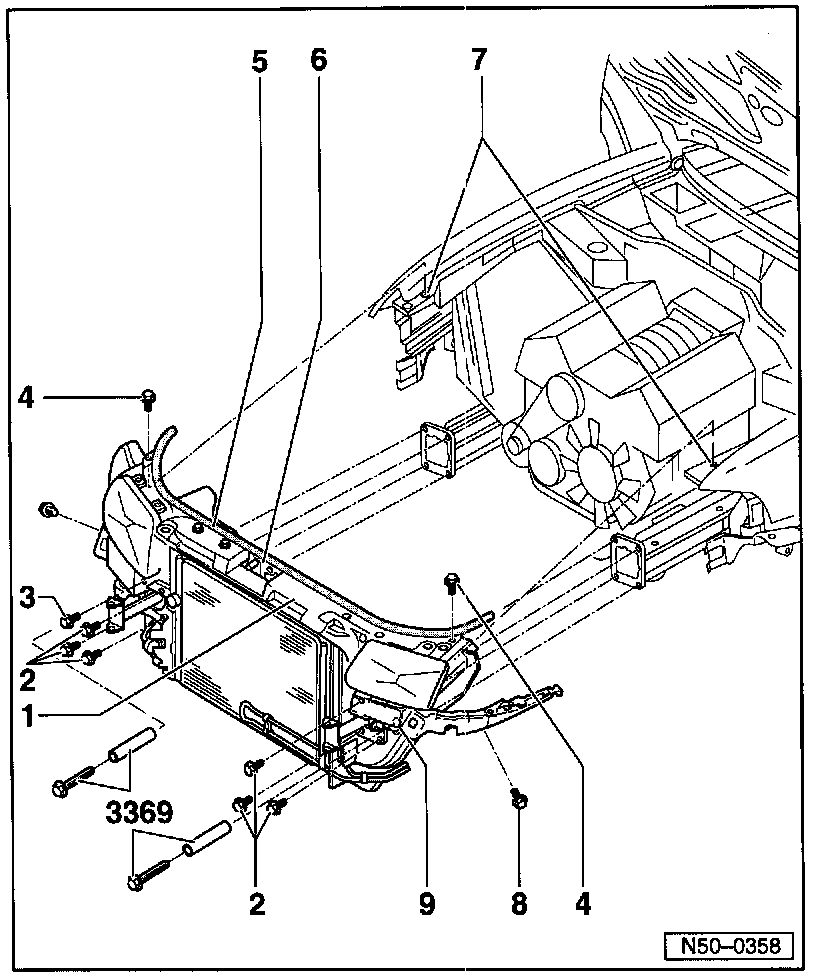

Lock carrier and front bumper reinforcement, assembly overview up to 09/00






1. Lock carrier and front bumper reinforcement

2. Bolt
Qty. 6 50 Nm

3. Bolt
50 Nm

4. Bolt
Qty 2 8 Nm

5. Seal
6. Bowden cable
7. Hole in side panel (fender mounting flange)

8. Bolt
Qty. 2 8 Nm

9. Hole for special tool
Support tools and equipment 3369
