11: Function of Warning Light For Brake System -K118-

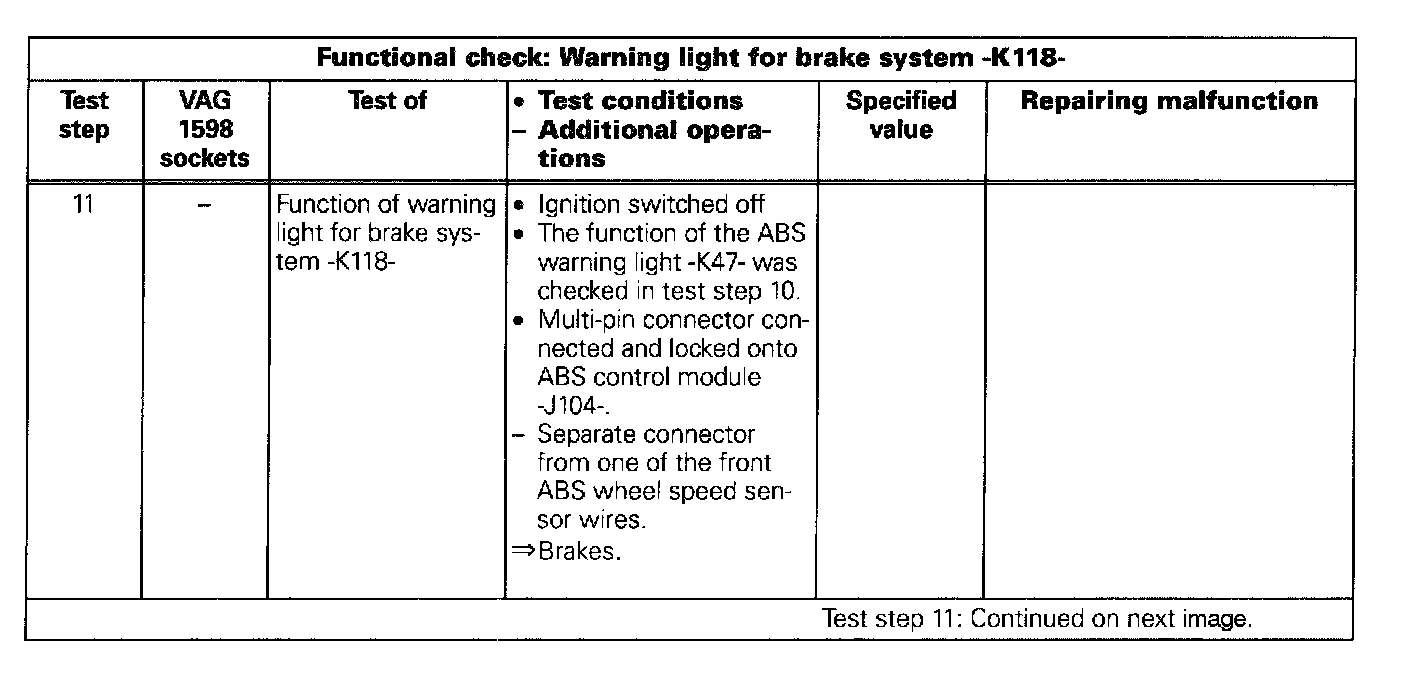

Part 1 of 3:

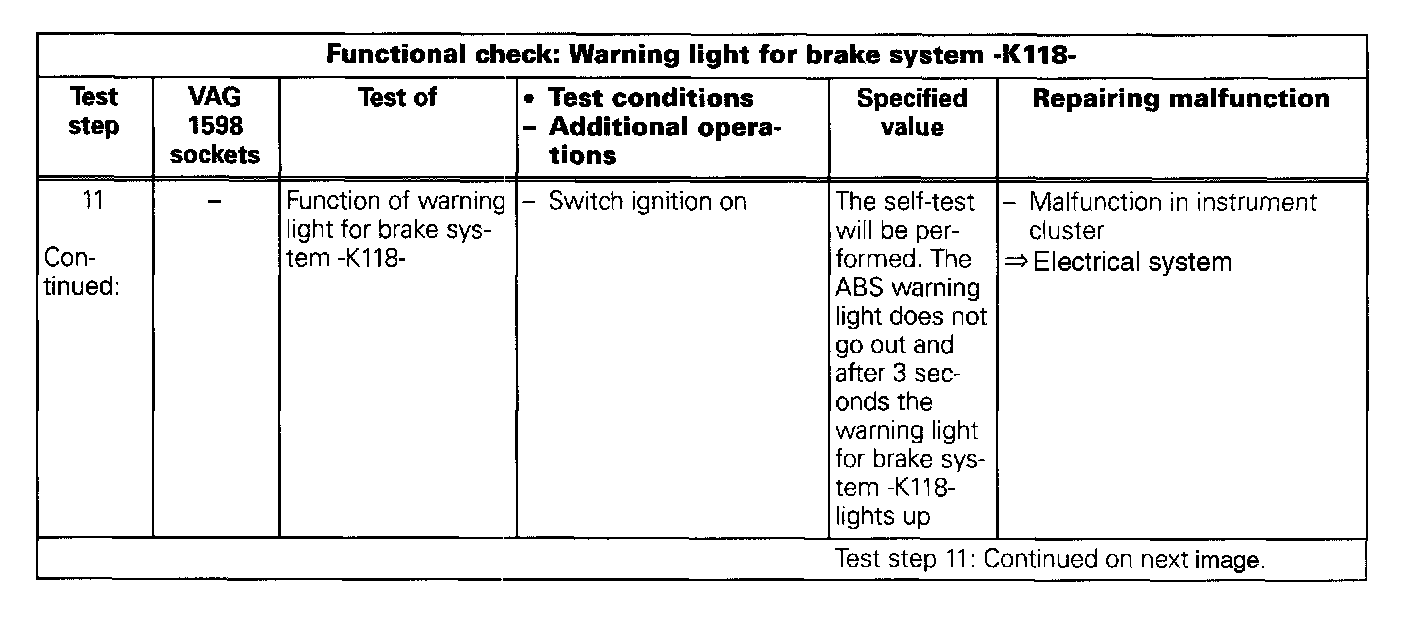

Part 2 Of 3:

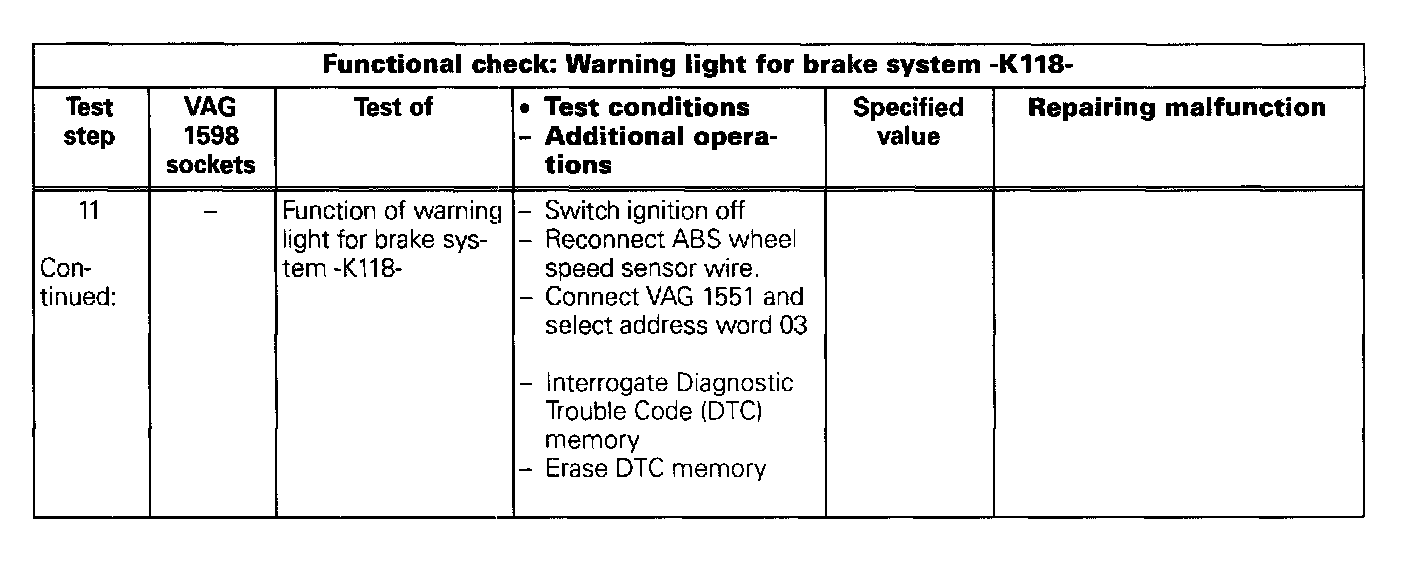

Part 3 Of 3:





Functional check: Warning light for brake system -K118-
