Evaluating Measuring Value Blocks




Read measuring value block, evaluating

- Engine running at idle

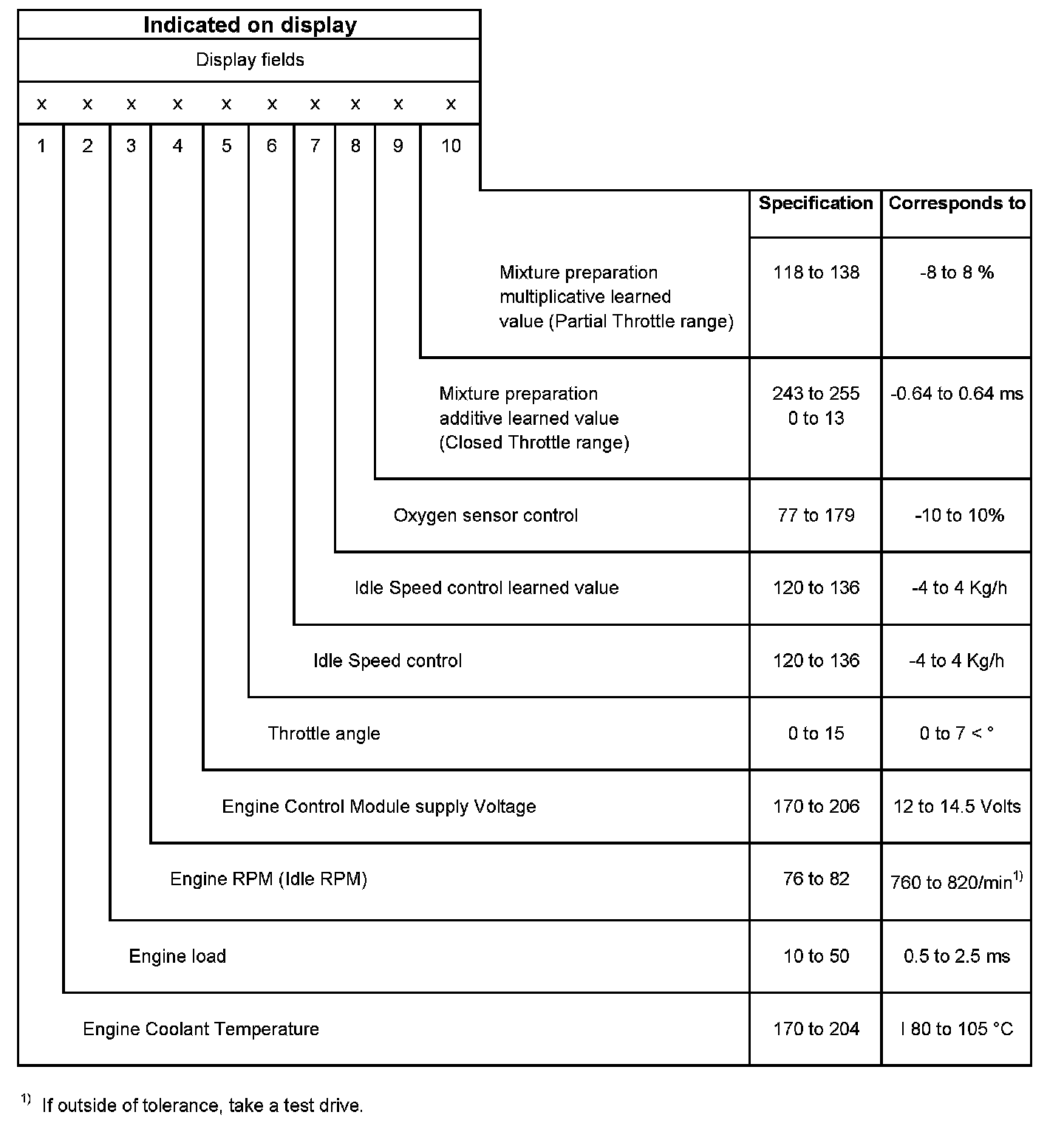

Indicated on display


Read measuring value block 0

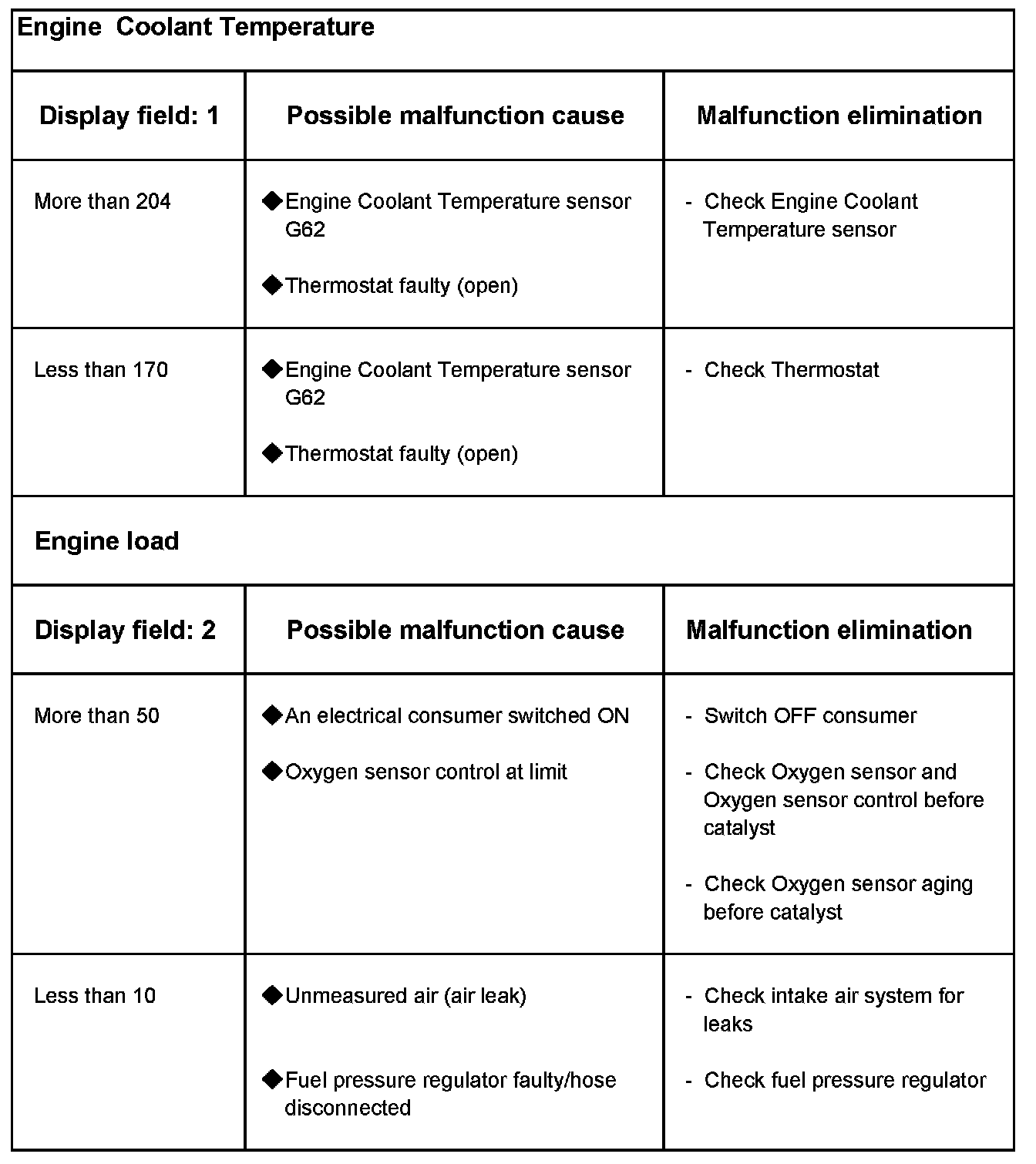

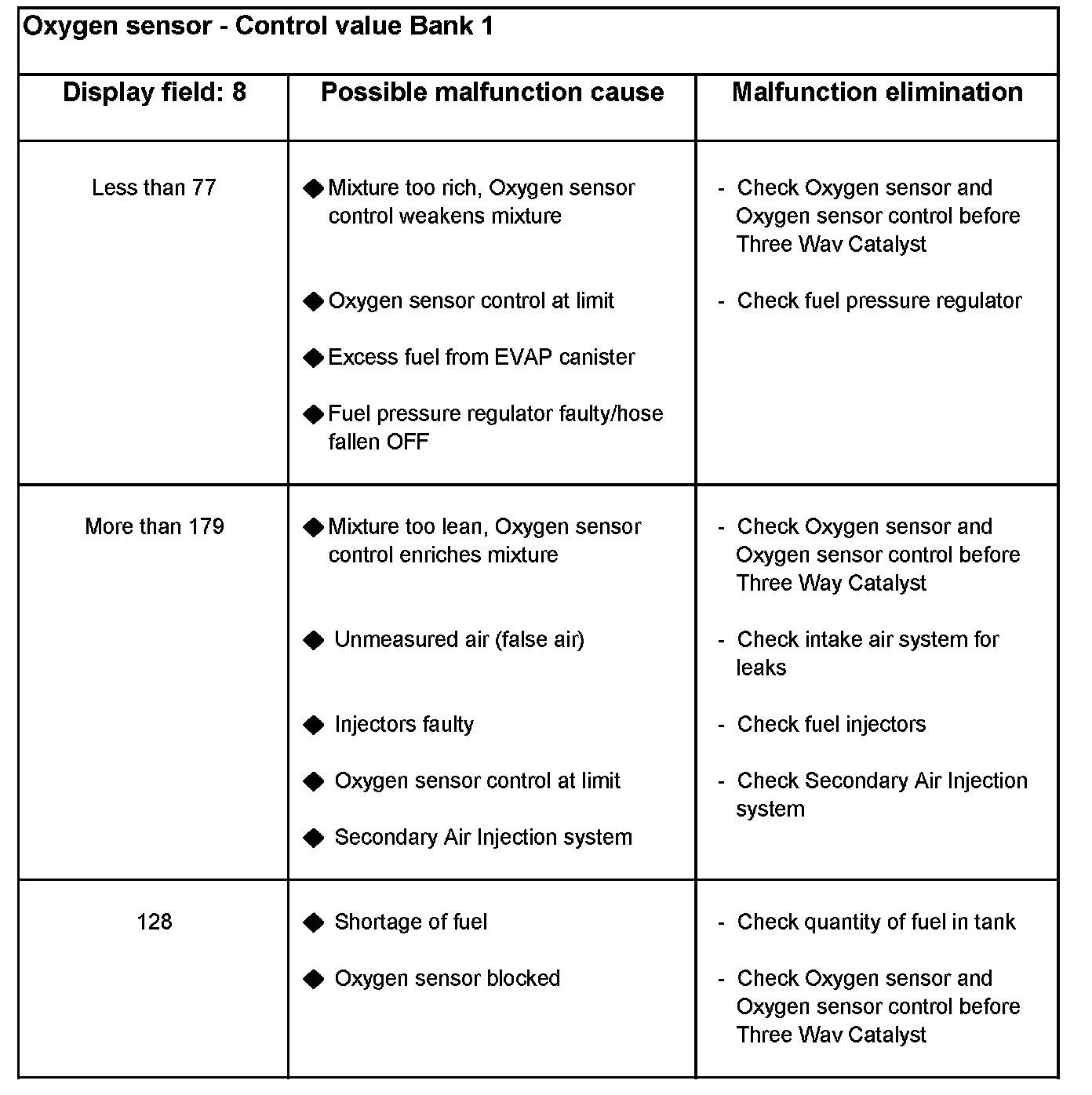

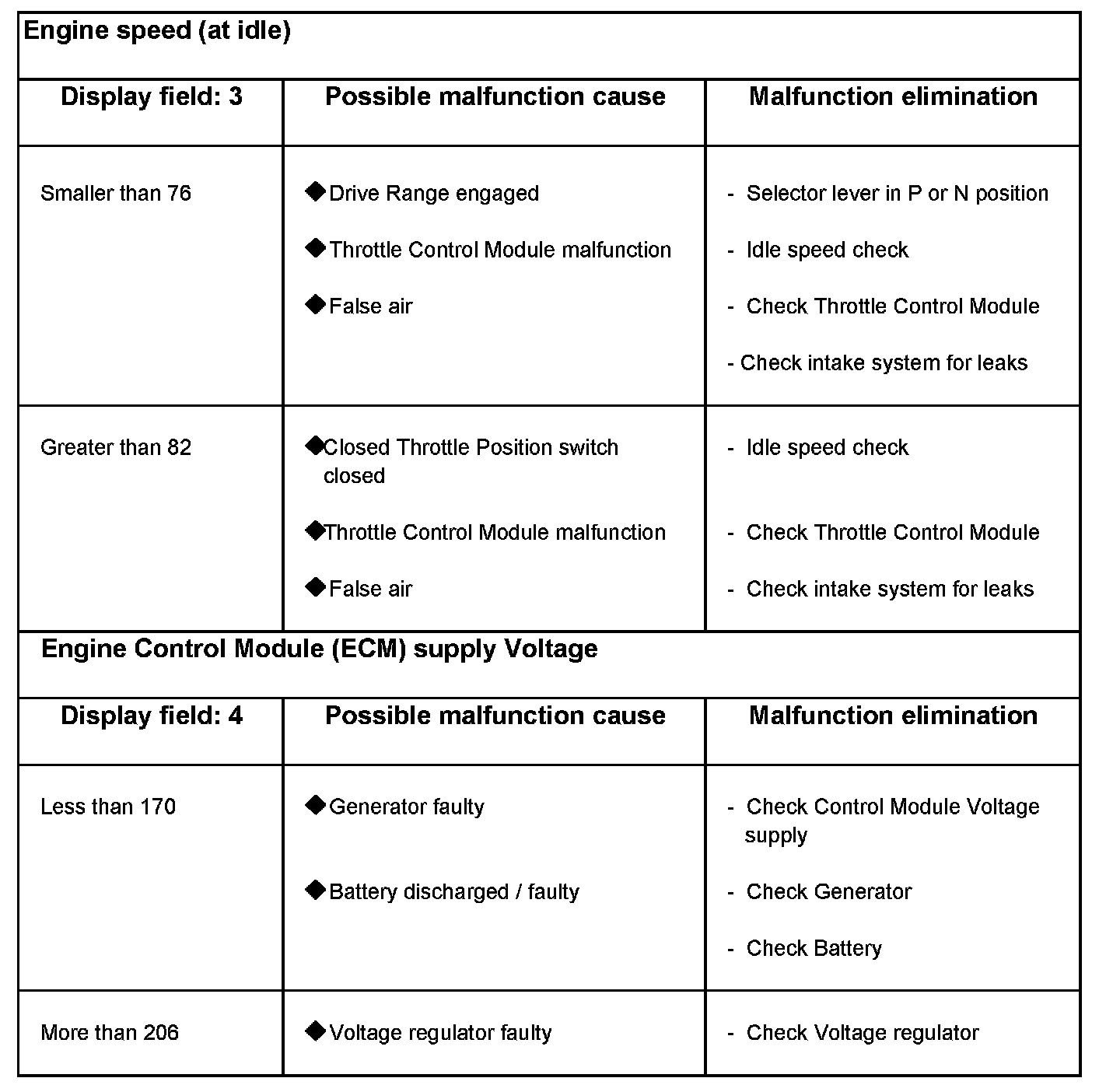

Display Group 000, evaluating
