Removing and Installing

5 Speed Manual 02J

Clutch Pedal, Removing And Installing
Special Tools

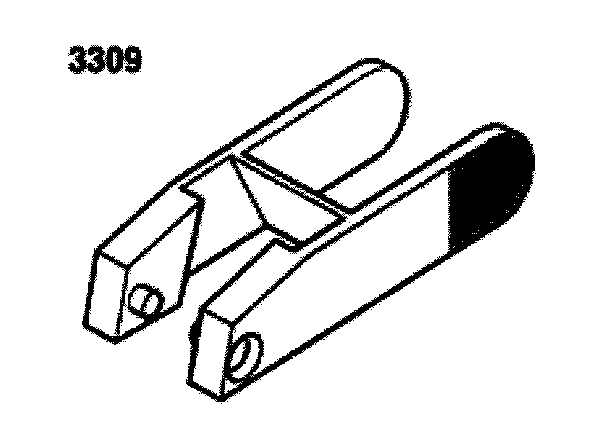

- 3309 Release tool

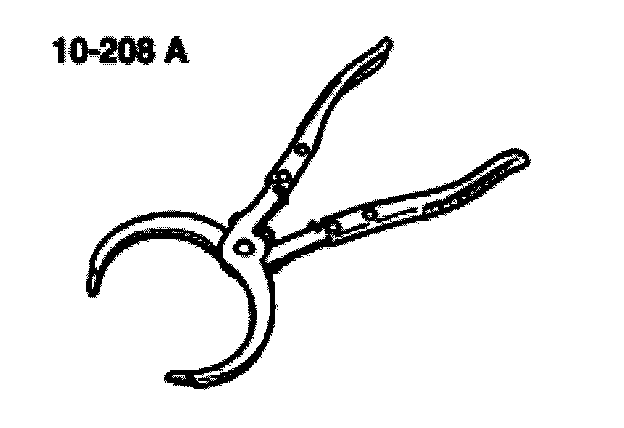

- 10-208 A Pliers

Removing
- Remove over-center spring.
- Separate clutch pedal from master cylinder and push operating rod toward engine compartment onto stop.

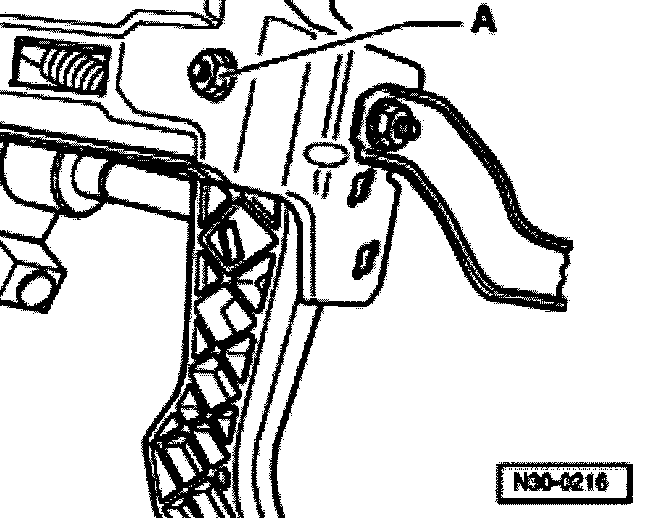

- Remove nut -A-.
- Pull bolt out and remove clutch pedal.

Installing
Installation is carried out in the reverse sequence, when doing this note the following:
- Install over-center spring.

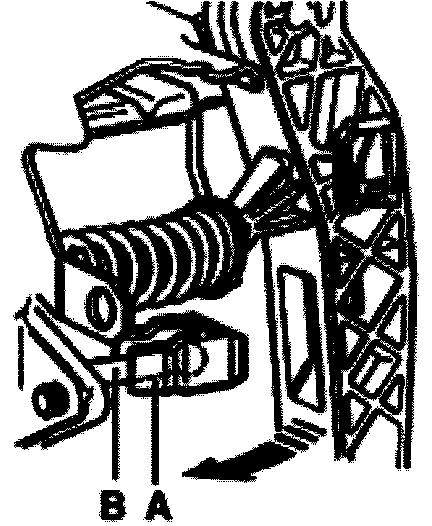

- Fit retainer -A- to master cylinder operating rod -B-.
- Press clutch pedal in direction of arrow to engage. Ensure correct location.
- Fill brake fluid reservoir up to "max" marking with brake fluid.



Bleeding clutch system when fluid level is below "min" marking.
