Over-Center Spring, Removing and Installing

5 Speed Manual 02J

Over-Center Spring, Removing And Installing
Special Tools

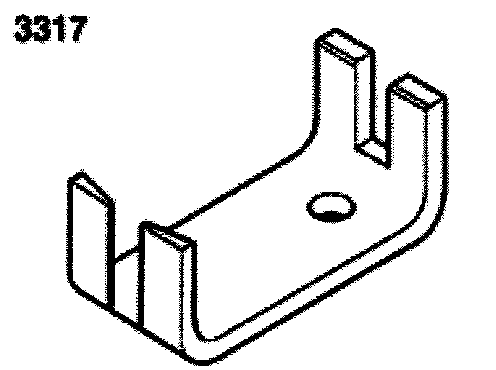

- 3317 Installation clamp

Removing
- Remove driver's side lower dash cover. Refer to Body and Frame.

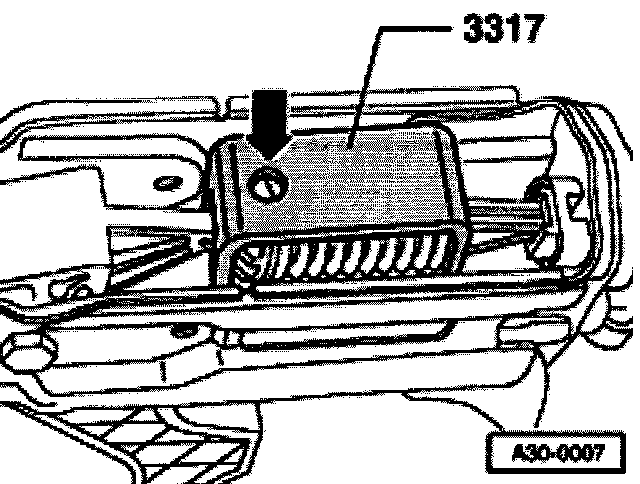

- Tension over-center spring with clutch pedal and fit retaining clamp 3317 from above.

Note:
- Hole (arrow) faces toward clutch pedal.

- Bring clutch pedal to rest position and take out over-center spring together with retaining clamp 3317.

Installing
- Pull clutch pedal toward passenger compartment.

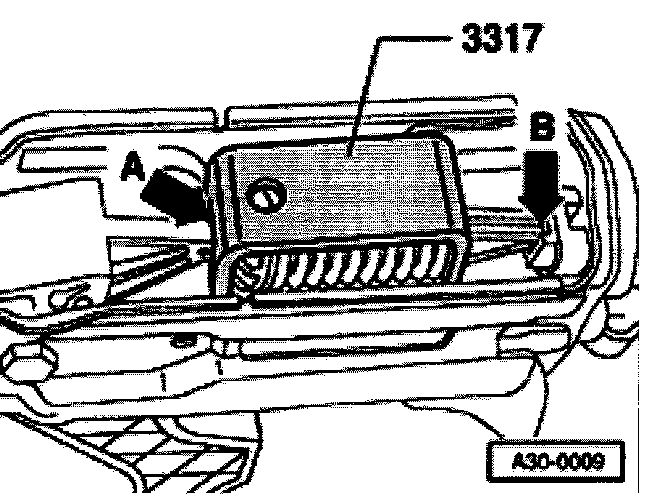

- Insert over-center spring into rear mounting first (arrow -B-), then operate clutch pedal until the retaining clamp seats on the mounting lug of the clutch pedal (arrow -A-).
- Take out retaining clamp while moving clutch pedal to rest position.
