Home >> Volkswagen >> 2000 >> Jetta Sedan (9M2) L4-1.8L Turbo (AWD) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Testing and Inspection >> Checking Operation of the Ignition Key Withdrawal Lock

Checking Operation of the Ignition Key Withdrawal Lock

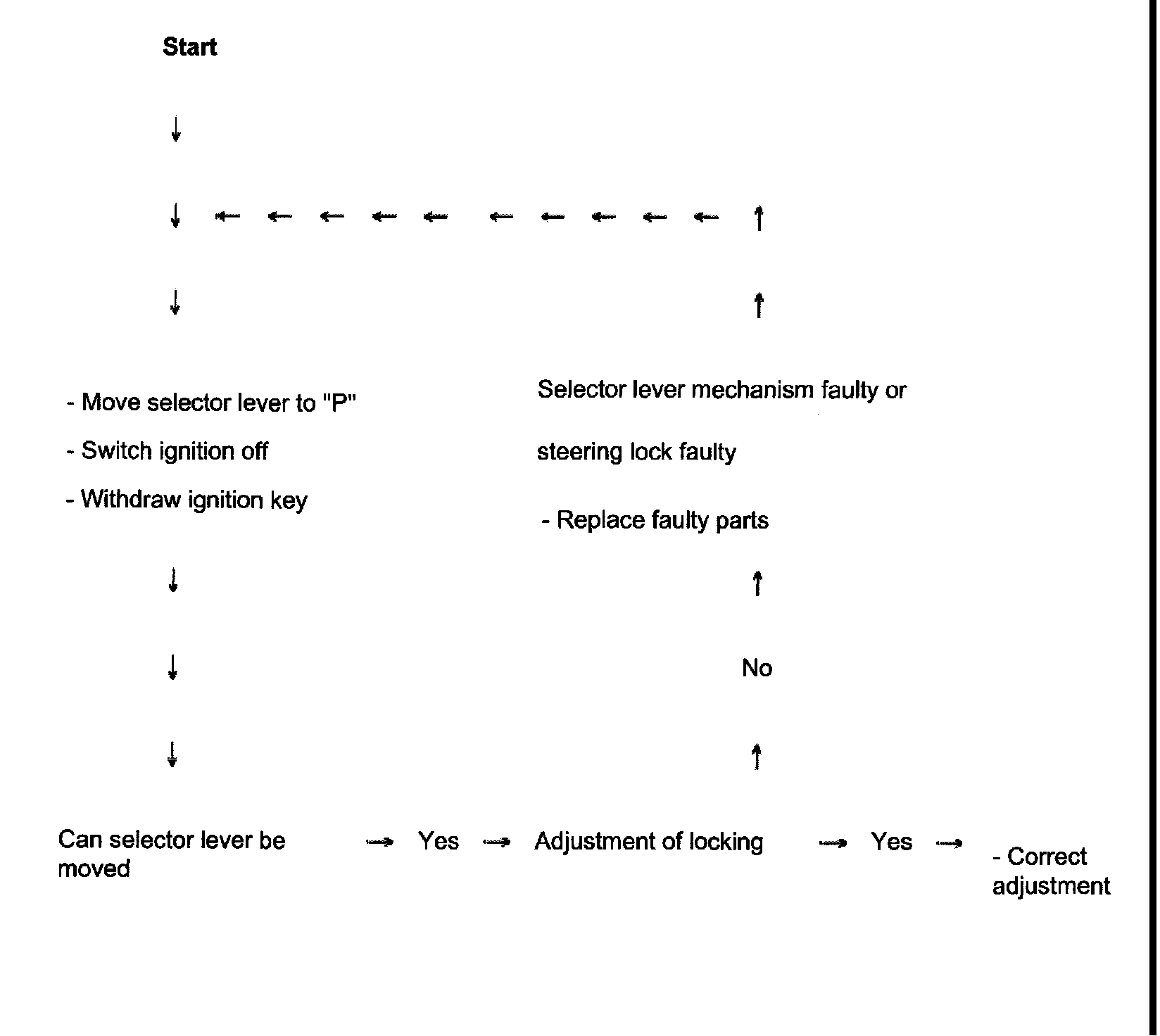

Checking operation of the ignition key withdrawal lock Part 1 of 4

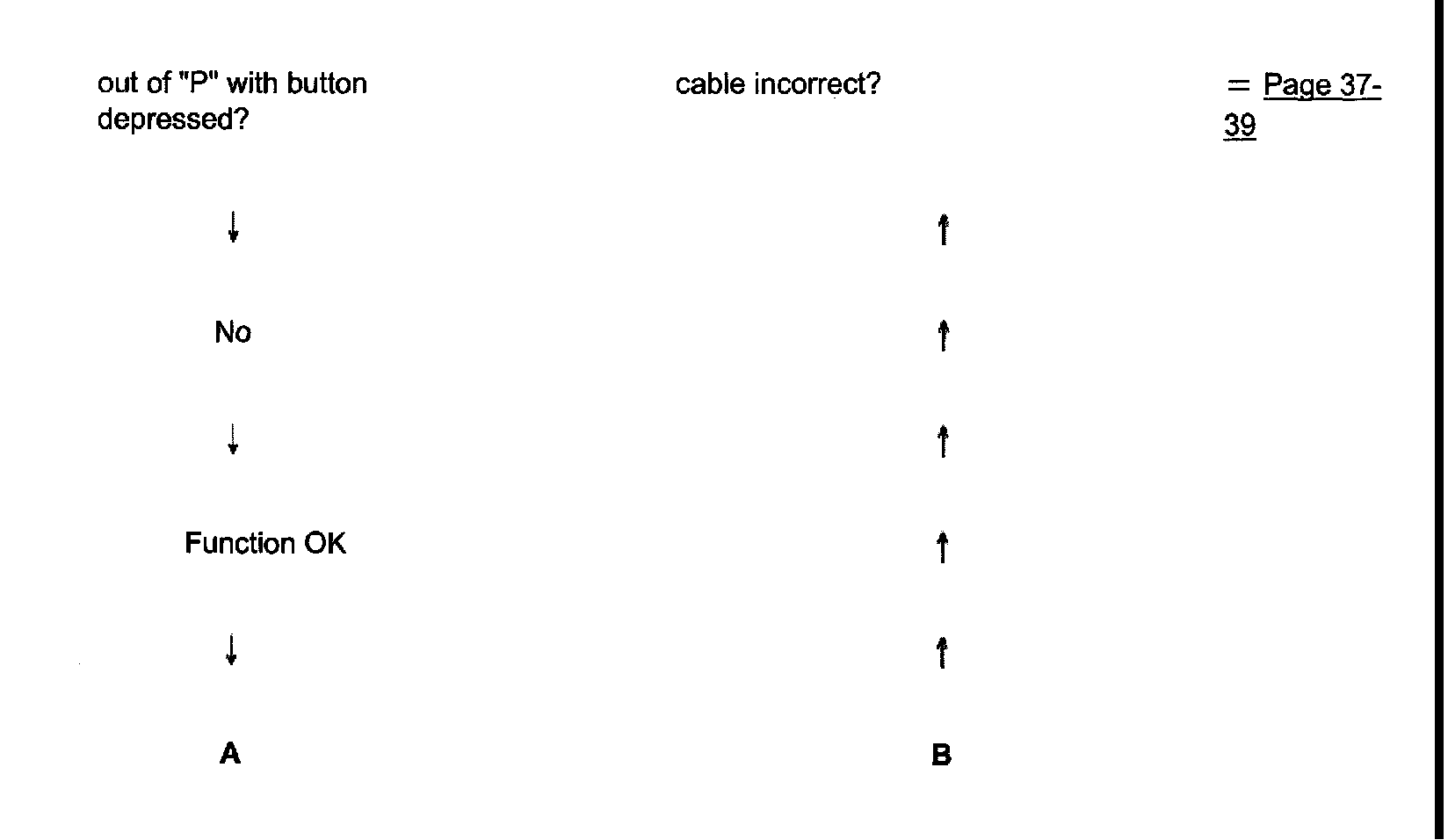

Checking operation of the ignition key withdrawal lock Part 2 of 4

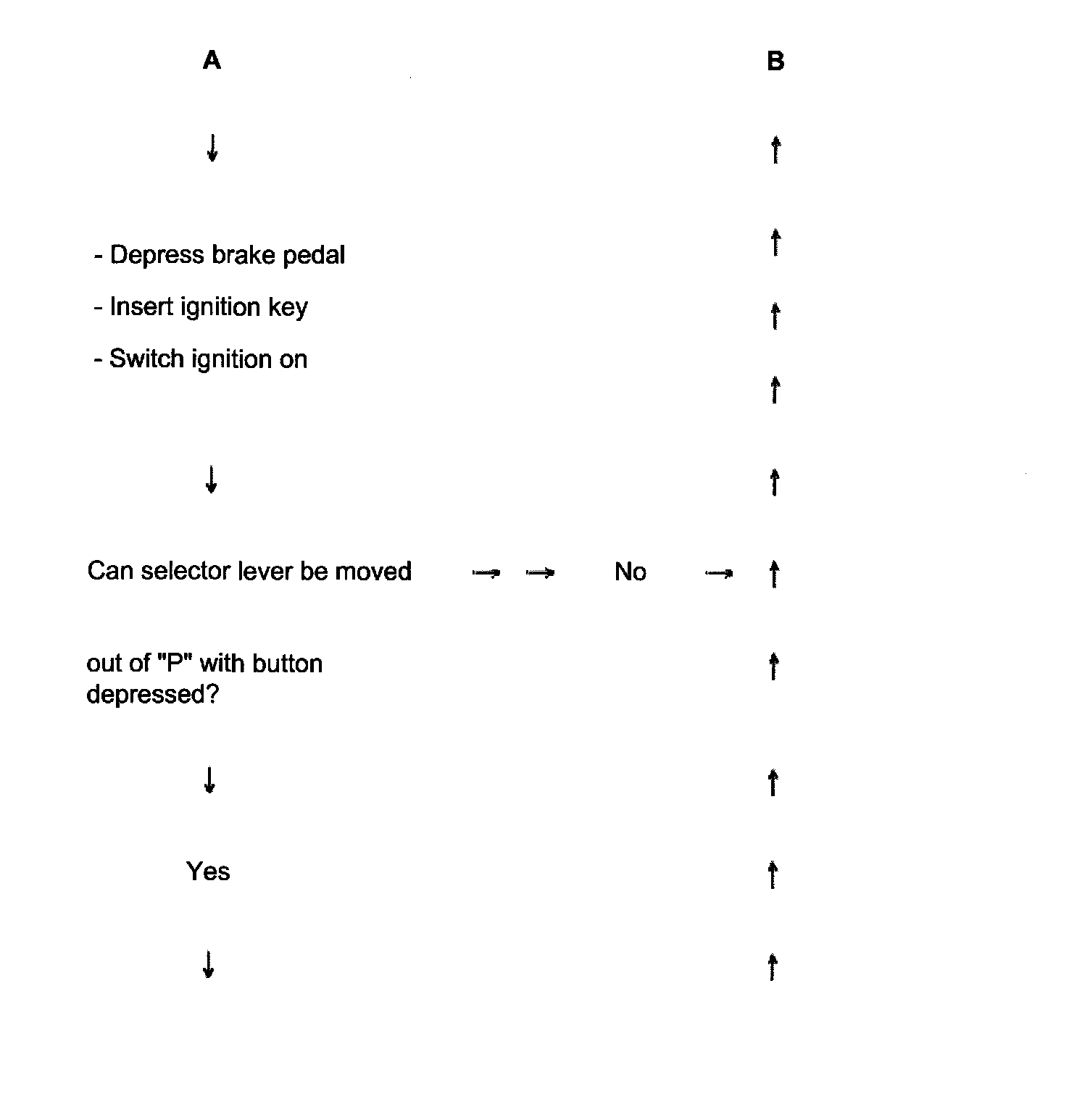

Checking operation of the ignition key withdrawal lock Part 3 of 4





Checking operation of the ignition key withdrawal lock Part 4 of 4
