Coast Clutch



4 Speed Automatic 01M

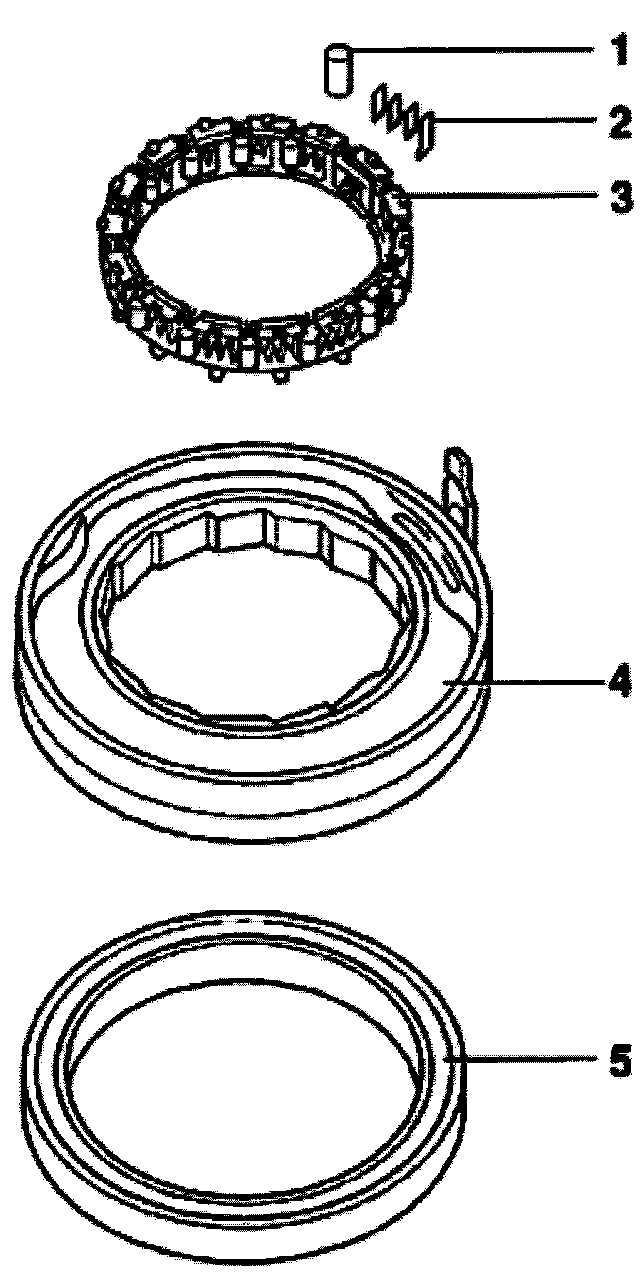

Freewheel with -B1 -piston, disassembling and assembling





1. Rollers
- Installing see Fig. 1
2. Springs
- Installing see Fig. 1
3. Cage
- Installing see Fig. 2
- Securing see Fig. 3
4. Outer ring
5. Piston
- Sealing lips are vulcanized to the piston
- Moisten sealing lips with ATF before installing
- Turn piston slightly when installing
- Installed position see Fig. 4





Fig. 1 Installing rollers and springs
- Insert springs so that spring (arrow) engages in cage.

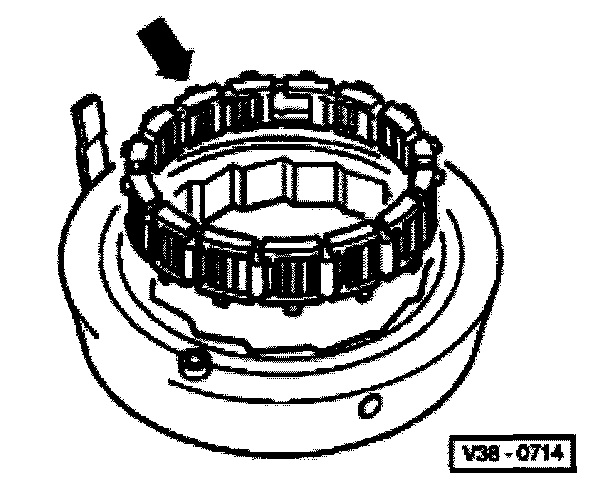

Fig. 2 Inserting cage with springs and rollers
- Install with large tabs (arrow) facing up.

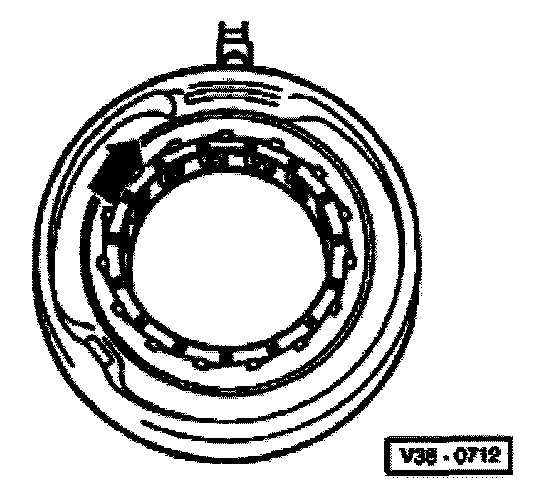

Fig. 3 Securing cage
- Secure cage by turning in direction of arrow as far as stop.

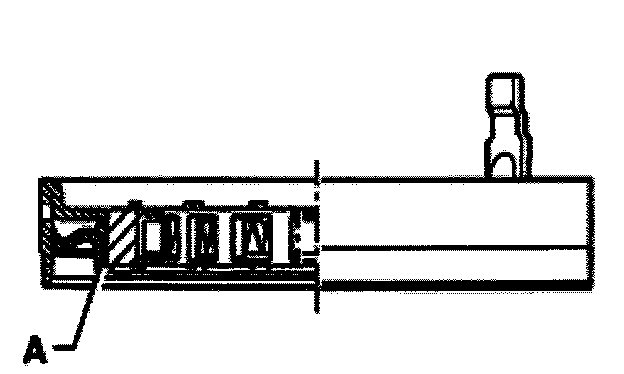

Fig. 4 Installed position of piston
- Insert piston -A- as shown.
