Ball Joint: Testing and Inspection

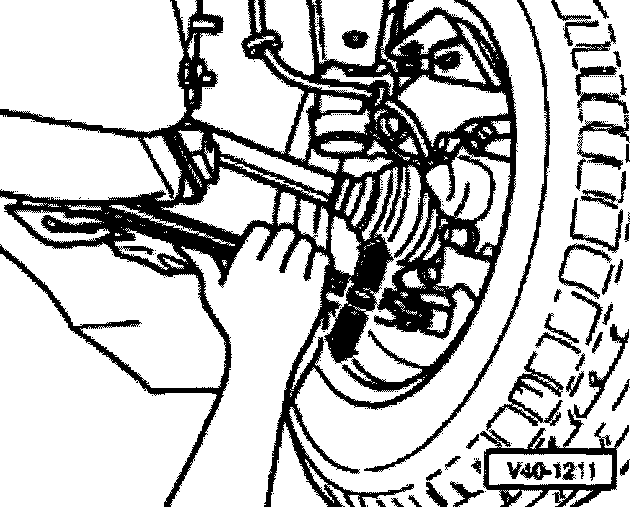

Axial play, checking





- Pull ball joint down and press up again.

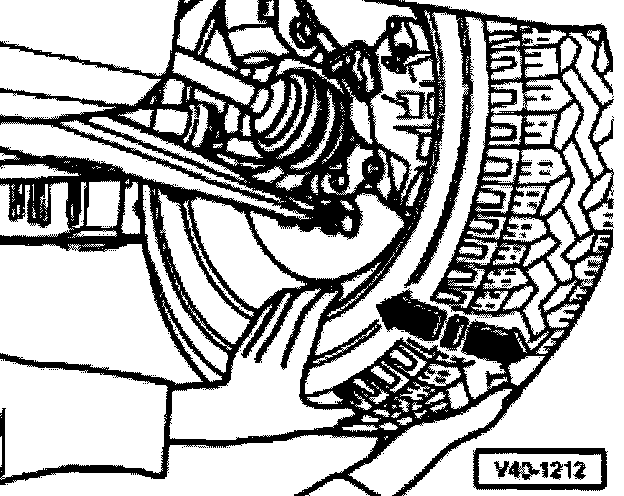

Radial play, checking





- Press lower part of wheel out and in.

NOTE:
^ There must be no visual play for both tests.
^ Observe ball joint during checks.
^ Take into account wheel bearing and/or upper strut mount movement.
^ Check rubber boot for damage, replace ball joint if necessary
